Includes Silicone Case and Padded Bag, Charger ... aThe ideal tool for viewing your satellite (DVB-S / S2), terrestrial (DVB-T / T2) and cable (DVB-C) installations. Viewing SD and HD programs *

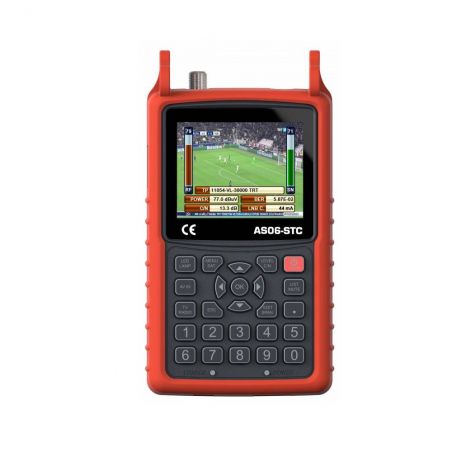

The AS06-STC meter is compact, professional and versatile, allowing all DVB-S / S2, DVBT-T / T2 and DVB-C2 digital measurements to be taken, such as: BER, MER, lost packets as well as echo measurements (DVB- T / T2).

The ASC06-STC has a high-quality 3.5-inch color screen that allows viewing of all measurements and also free MPEG-2 and MPEG-4 TV programs. It is suitable for configuring DiSEqC, Unicable, Multifeed and motor controlled rotary systems.

The AS06-STC has a very simple and intuitive human-machine interface that allows you to establish or review your installations in record time.

The AS06-STC includes a checksat mode for the satellite and a special tool to align terrestrial antennas. The user will have graphical information combined with an acoustic signal.

The AS06-STC has a USB interface for meter upgrade. Firmware updates are free for the life of the product.

Principal functions

• COMBO DVB S-S2 / DVBT-T2 / DVB-C signal analyzer
• All in one 45-2150MHz RF input (“F”) 75 ohm
• Video input for CCTV cameras 8MP AHD-TVI-CVI and CVBS
• 3.5 "high resolution, high brightness screen
• MPEG2-4 SD and HD images with program list, audio and video PID, all on one screen.
• Supports supplied AAC, DOLBY
• 800 MHz processor speed - 8MB memory
• Replaceable 3000mAh 7.4V Li battery with a duration of up to 4 hours
• Software update and frequency database update via USB memory
• PC software for updating the frequency database
• Programmable channel plans for cable TV (30), DTT (30) and satellite (150) by PC or keyboard.
• Memory for 5000 frequencies
• Backlit silicone numeric keypad
• Energy saving timer function
• Level measurement in dBm, dBuV and dBmV
• Level warnings with acoustic signals
• LED lamp
• End user test voltage levels
• Only 1 Kg of weight including the battery
• Size 190mm X 110mm X 60mm
• Temperature range 0 ° C to +50 ° C
• Humidity degree up to 90% without condensation

Accessories

• Silicone cover with carrying strap
• 220V adapter to charge the battery
• Vehicle cigarette lighter charger
• A-V cable
• F-F Female connector
• Carrying case
