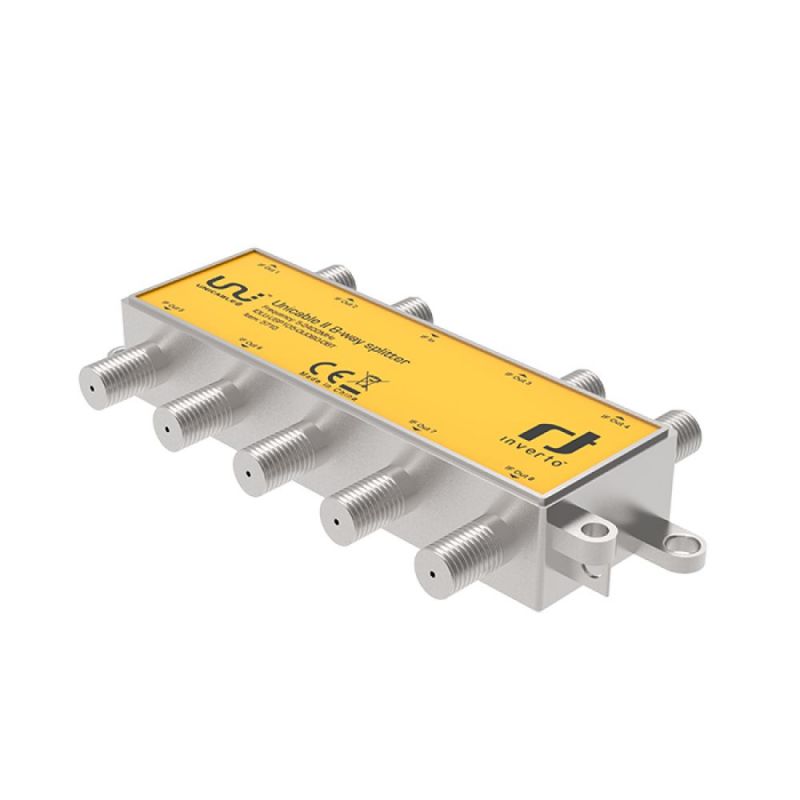

Inverto Unicable 2 Distributor 8-way splitter, 5-2400 MHz

IDLU-USP1O5-OUO8O-OBT. This Unicable™ splitter supports bidirectional distribution of DC and RF signals. It enables control signals and DiSEqC commands sent from the Set Top Boxes to the LNB as well as DiSEqC commands sent from the LNB to the Set Top Box.

€14.51
Tax included
Reference inverto-5710
Brand Inverto
Quantity
Available in 24/48h

Free shipping

Inverto Unicable 2 Distributor 8-way splitter, 5-2400 MHz

€14.51

IDLU-USP1O5-OUO8O-OBT. This Unicable™ splitter supports bidirectional distribution of DC and RF signals. It enables control signals and DiSEqC commands sent from the Set Top Boxes to the LNB as well as DiSEqC commands sent from the LNB to the Set Top Box. This high-quality Unicable™ splitter features low insertion loss, high RF isolation between the output ports and allows greater flexibility in single home or MDU installation scenarios. Typically, the splitter would be installed at a central location (i.e. roof’s attic) with separate coax cables stretched inside the house/apartment to each Set Top Box. The Unicable splitter embeds protective diodes to guarantee DC isolation between connected set top boxes.

Features

  • Low insertion loss, high return loss and port isolation for satellite and CATV applications
  • Unicable compatible
  • RF shielded Zinc die cast housing (Class A)
  • Grounding terminal
  • Supplied with two mounting screws
  • Light weight and compact size

Specifications

Technical specifications
Frequency range 5 MHz - 2400 MHz
Inputs 1x F-type, female
Output 8x F-type, female
Insertion loss <12.5 dB (5 MHz ~ 40 MHz)
<12.5 dB (40 MHz ~ 860 MHz)
<16 dB (860 MHz ~ 1750 MHz)
<16 dB (1750 MHz ~ 2400 MHz)
Isolation between ports 20 dB min.
Input return loss 10 dB min.
Output return loss 10 dB min.
DC & 22kHz pass from Output to Input 35 V max., up to 1 A pass through current towards LNB
bi-directional for DiSEqC commands
Steering diodes Yes
Impedance 75 Ω
CE, RF screening Class Class A
Operating temperature -30° C ~ +60° C
Weight 105 g
Dimensions (W x D x H) 118 mm x 59 mm x 18.8 mm
