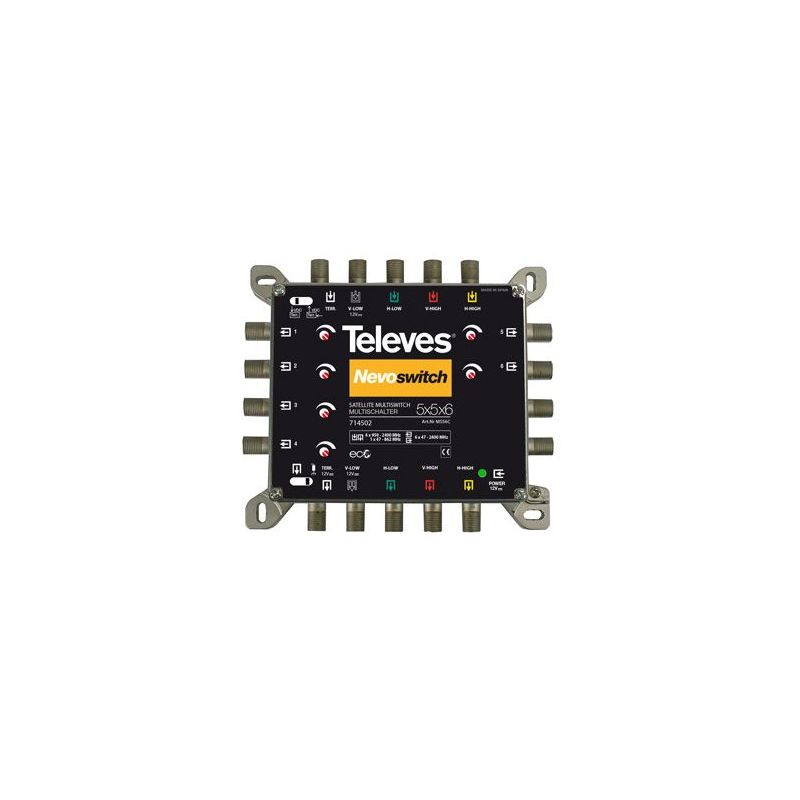

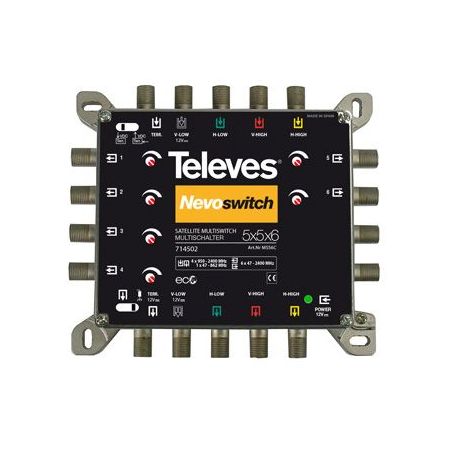

Nevoswitch Multiswitch 5x5x6 F Terminal/Cascade Televes 714502
CONFIGURABLE ELEMENTS FOR BETTER SIGNAL ADJUSTMENT
€166.74
Tax included
Reference
televes-714502
Brand
Televes
Nevoswitch Multiswitch 5x5x6 F Terminal/Cascade Televes 714502
€166.74
RANGE OF 5 WIRE CASCADABLE MULTISWITCHES
EUROPEAN QUALITY, DESIGN AND MANUFACTURE
CONFIGURABLE ELEMENTS FOR BETTER SIGNAL ADJUSTMENT
Highlights:
- Chassis made of zamak: radiation inmune.
- Suitable for star/cascade system configurations.
- Independent Output Level adjustment (except QUAD compatible units).
- Low consumption ECO mode. Thanks to the ECO system, the consumption decreases as the number of users is reduced.
Main Features:
- Small size and compact design.
- Cascadable and terminal configuration in a single reference.
- Independent line-amplifier level adjustment.
- Multiple powering options (Jack, VLow, Terrestrial Input/Output and user outputs)
- Independent output level adjustment.
Specs
| Reference | 714502 | |||
|
Type |
5X5X6 | |||
| Frequency margin |
MHz |
SAT | 950-2400 | |
| TER | 47-862 | |||
| Input level | dBµV | SAT | EN50083-3 / IM35dBc | 105 |
| TER | DIN 45004-B | 95 | ||
| Maximum gain | dB | SAT | - | |
| TER | - | |||
| Equalizer | SAT | - | ||
| TER | - | |||
| Through losses | SAT | 4 ± 2 | ||
| TER | 3 ± 1 | |||
| Tap losses 1 | SAT | A2 | 5 | |
| B2 | 0 | |||
| TER | Typ. | 2,5 | ||
| IN-OUT isolation | SAT | >30 | ||
| DC Pass | mA | LNB/TER | Input max. | 250 |
| A | Total | 1 | ||
| Powering | Vdc | 12 | ||
| DC Pass | In-Out / Out-In 3 | |||
| Total maximum consumption | mA | Power Supply 12Vdc (PWR) | 65 ± 5 | |
| Receiver (12/18V) | 334 | |||
| Temperature range | ºC | -5...+45ºC | ||
| Protection Index | IP | IP20 | ||
| Weight | g | 400 | ||
| Dimensions | mm | 140x120x30 | ||
