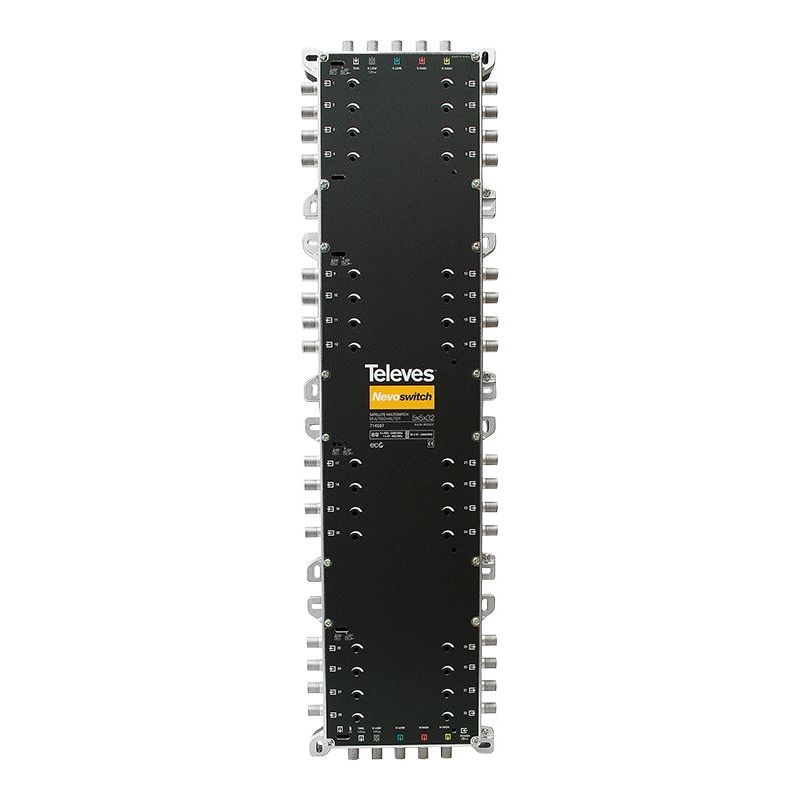

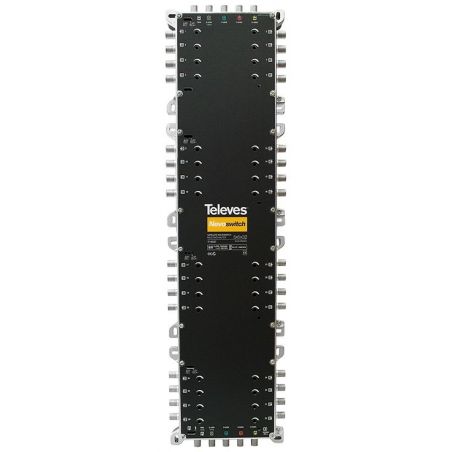

Nevoswitch Multiswitch 5x5x32 F Terminal/Cascade Televes 714507

CONFIGURABLE ELEMENTS FOR BETTER SIGNAL ADJUSTMENT

€732.46

Tax included

Reference televes-714507

Brand Televes

Nevoswitch Multiswitch 5x5x32 F Terminal/Cascade Televes 714507

€732.46

Description
Product Details

RANGE OF 5 WIRE CASCADABLE MULTISWITCHES

EUROPEAN QUALITY, DESIGN AND MANUFACTURE

CONFIGURABLE ELEMENTS FOR BETTER SIGNAL ADJUSTMENT

Highlights:

Chassis made of zamak: radiation inmune.
Suitable for star/cascade system configurations.
Independent Output Level adjustment (except QUAD compatible units).
Low consumption ECO mode. Thanks to the ECO system, the consumption decreases as the number of users is reduced.

Main Features:

Small size and compact design.
Cascadable and terminal configuration in a single reference.
Independent line-amplifier level adjustment.
Multiple powering options (Jack, VLow, Terrestrial Input/Output and user outputs)
Independent output level adjustment.

Specs

Reference				714507
Type				5X5X32
Frequency margin	MHz	SAT		950-2400
		TER		47-862
Input level	dBµV	SAT	EN50083-3 / IM35dBc	105
		TER	DIN 45004-B	95
Maximum gain	dB	SAT		-
		TER		-
Equalizer		SAT		-
		TER		-
Through losses		SAT		12 ± 5
		TER		10 ± 3
Tap losses ¹		SAT	A²	7
			B²	8
		TER	Typ.	5
IN-OUT isolation		SAT		>30
DC Pass	mA	LNB/TER	Input max.	250
	A		Total	1
Powering	Vdc			12
DC Pass				In-Out / Out-In ³
Total maximum consumption	mA	Power Supply 12Vdc (PWR)		235 ± 25
		Receiver (12/18V)		33⁴
Temperature range	ºC			-5...+45ºC
Protection Index	IP			IP20
Weight	g			1600
Dimensions	mm			140x510x30
