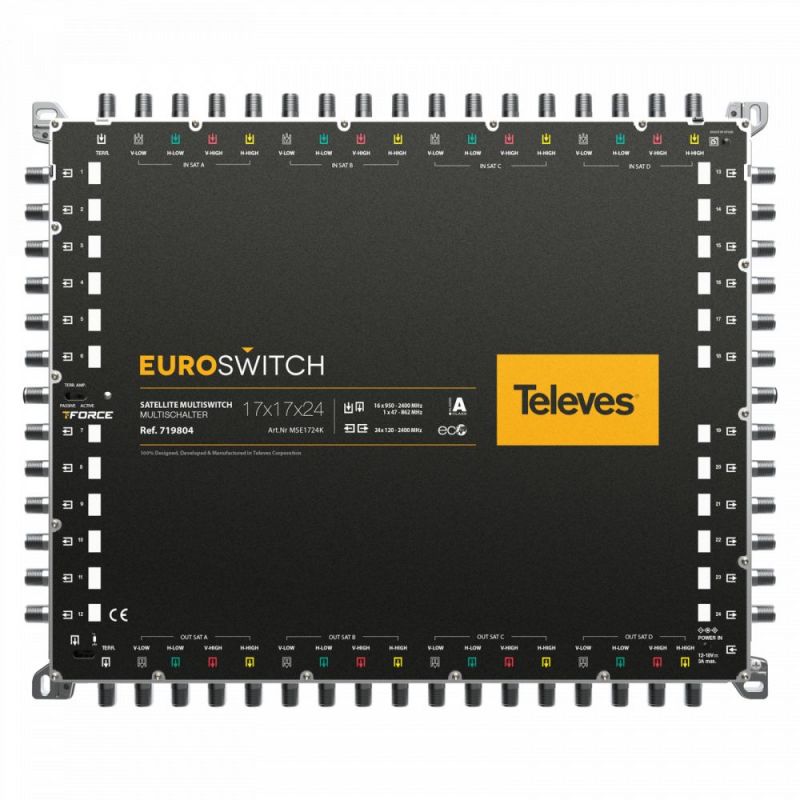

EuroSwitch 17 inputs - 24 outputs Televes

Compact multiswitch equipped with 17 inputs (one terrestrial and 16 for four satellites, each with its four polarities) and 24 user outputs.

Thanks to its great compactness and its optimized electronic design, it presents very low through and tap losses. This allows to reduce the number of amplifiers needed in the cascade and to obtain a better balanced signal in the users, even in large collective installations.

Can be used as a terminal (star topology) or as a cascade by using a simple switch. In addition, it incorporates a second switch that actives the TForce technology, which automatically adjusts the terrestrial signal and keep it constant despite variations in the reception.

Highlights

• Very compact in dimensions and weight, even in models with high number of users
• Very low through and tap losses
• Wide 12-18V power supply range, making it compatible with most existing systems
• Equipped with the TForce technology, the terrestrial output level is automatically adjusted (TERR. AMP. ACTIVE) to the optimal level
• Great isolation between inputs and outputs
• 100% european design, quality, and manufacturing

Main features

• High shielding: A class
• Input and output colour identification
• Low consumption under normal conditions. In addition, ECO mode reduces consumption as the number of connected users decreases
• Versatile: selector switch to shift between cascade and terminal modes
• Two powering options: From the power supply, or from the cascade through the satellite inputs or outputs
• Current circulation between all inputs and cascades

Specifications
