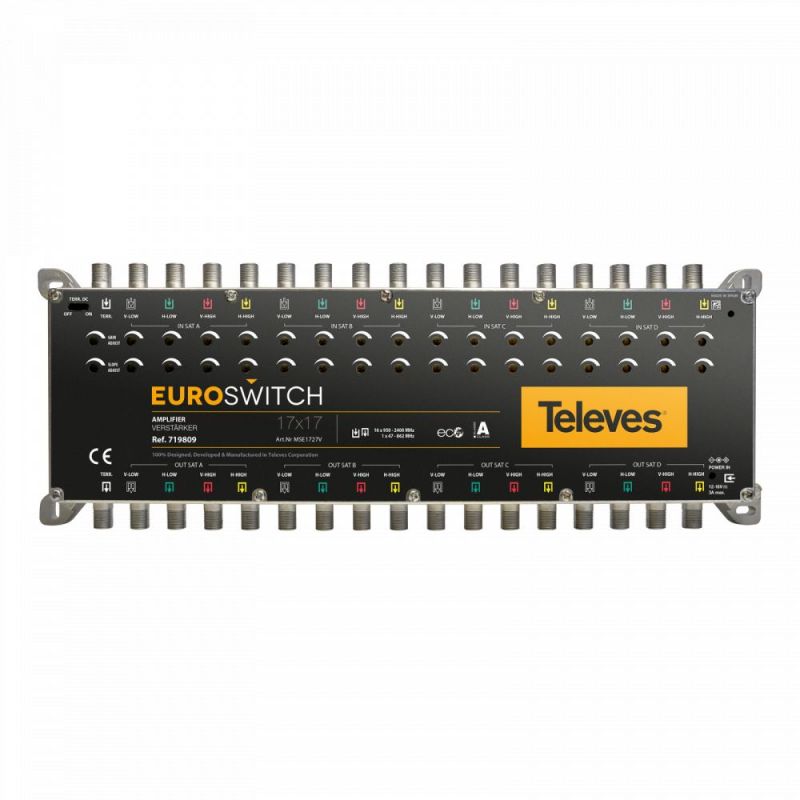

EuroSwitch amplifier 17 inputs 27/31dB Televes
Compact amplifier equipped with 17 inputs (one terrestrial and the four polarities of four satellites) that allows increasing the number of users in the installation while optimizing the signal received by each of them. Around 27 dB and 31 dB amplification in terrestrial and satellite respectively.
Reference
televes-719809
Brand
Televes
Compact amplifier equipped with 17 inputs (one terrestrial and the four polarities of four satellites) that allows increasing the number of users in the installation while optimizing the signal received by each of them. Around 27 dB and 31 dB amplification in terrestrial and satellite respectively.
Highlights
- Very compact in dimensions and weight
- High output level
- Switch to supply power to the terrestrial trunk line (PWR TERR), allowing to power headend installed elements such as intelligent antennas or amplifiers
- Gain (20 dB) and slope (12 dB) individual adjustment
- Wide 12-18V power supply range, making it compatible with most existing systems
- 100% european design, quality, and manufacturing
Main features
- Made of zamak
- Input and output colour identification
- Two powering options: From the power supply, or from the cascade through the satellite inputs or outputs
- Low power consumption
Specifications
| Type | 17x17 | |||
| Frequency range | MHz | SAT | 950 … 2400 | |
| RF | 88 … 862 | |||
| Output level | dBμV | SAT | EN50083-3 IM35dBc |
118 |
| RF | DIN 45004-B | 114 | ||
| Gain | dB | SAT | 31 | |
| RF | 27 | |||
| Regulation | 0 ... 20 | |||
| Slope | 0 ... 12 | |||
| Isolation | dB | >30 | ||
| Powering | V | 12 ... 18 | ||
| Max. total consumption | A | @12 -18V | 1,15 - 0,765 | |
| Max. power consumption | W | 13,8 | ||
| Temperatura Range | ºC | –5….+45 | ||
| Protection level | IP | IP20 | ||
