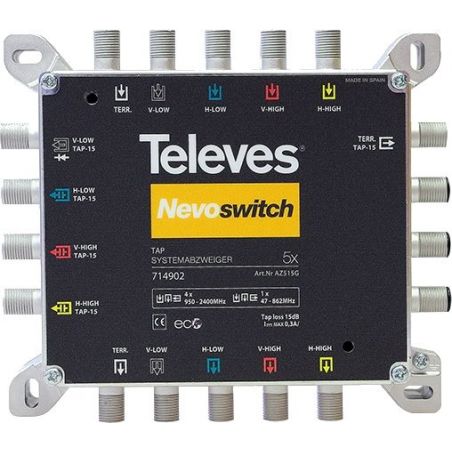

Tap 5x5x5 "F" 15dB - Nevoswitch Televes 714902

CONFIGURABLE ELEMENTS FOR BETTER SIGNAL ADJUSTMENT

€71.08

Tax included

Reference televes-714902

Brand Televes

Tap 5x5x5 "F" 15dB - Nevoswitch Televes 714902

€71.08

Description
Product Details

RANGE OF 5 WIRE CASCADABLE MULTISWITCHES

EUROPEAN QUALITY, DESIGN AND MANUFACTURE

CONFIGURABLE ELEMENTS FOR BETTER SIGNAL ADJUSTMENT

Highlights:

Chassis made of zamak: radiation inmune.
Suitable for star/cascade system configurations.
Independent Output Level adjustment (except QUAD compatible units).
Low consumption ECO mode. Thanks to the ECO system, the consumption decreases as the number of users is reduced.

Main Features:

Small size and compact design.
Cascadable and terminal configuration in a single reference.
Independent line-amplifier level adjustment.
Multiple powering options (Jack, VLow, Terrestrial Input/Output and user outputs)
Independent output level adjustment.

Specs

Reference				714902
Type				5X5X5
Frequency margin	MHz	SAT		950-2400
		TER		47-862
Input level	dBµV	SAT	EN50083-3 / IM35dBc	-
		TER	DIN 45004-B	-
Maximum gain	dB	SAT		-
		TER		-
Equalizer		SAT		-
		TER		-
Through losses		SAT		1,5 ± 0,5
		TER		1,5 ± 0,5
Tap losses ¹		SAT	A²	17 ± 3
			B²	17 ± 3
		TER	Typ.	15 ± 1
IN-OUT isolation		SAT		>25
DC Pass	mA	LNB/TER	Input max.	500
	A		Total	-
Powering	Vdc			-
DC Pass				In-Out / Out-In ³
Total maximum consumption	mA	Power Supply 12Vdc (PWR)		-
		Receiver (12/18V)		-
Temperature range	ºC			-5...+45ºC
Protection Index	IP			IP20
Weight	g			400
Dimensions	mm			140x120x30
