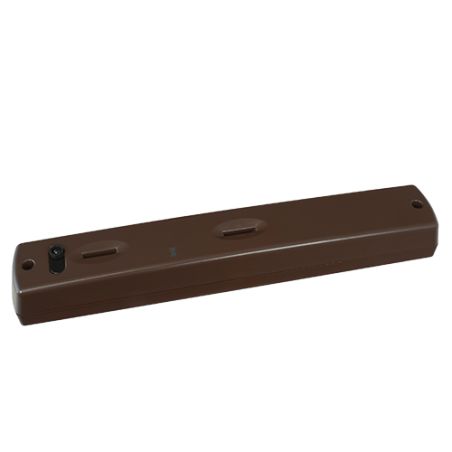

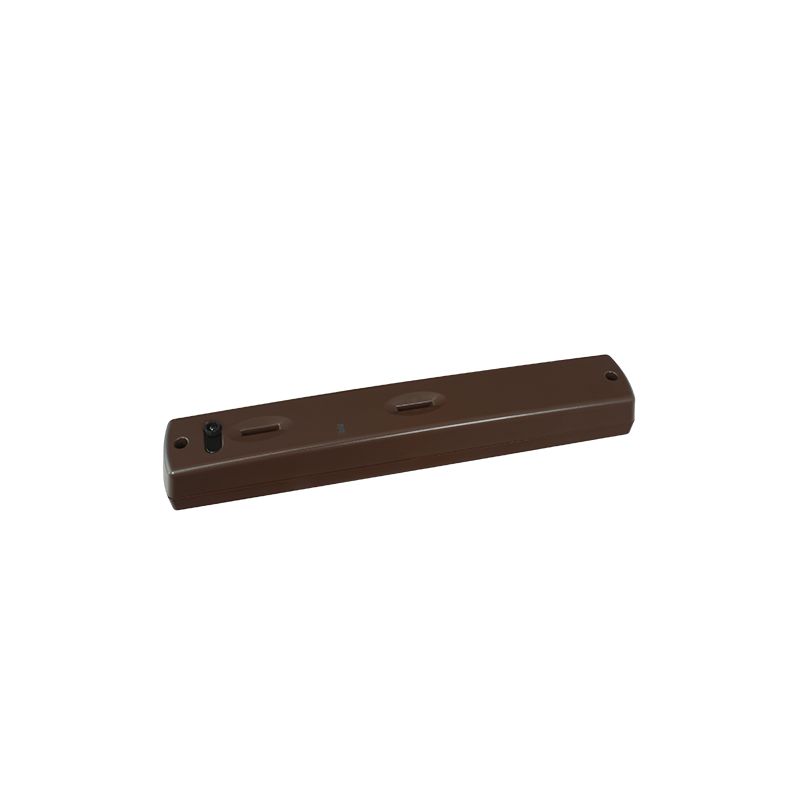

Sopras SOP-2IRDT-BR - PIR detector, Integrated Ajax Transmitter, Microwave…
search
  • Sopras SOP-2IRDT-BR - PIR detector, Integrated Ajax Transmitter, Microwave…

Sopras SOP-2IRDT-BR - PIR detector, Integrated Ajax Transmitter, Microwave…

PIR detector - Integrated Ajax Transmitter - Microwave and double PIR curtain type - Detection range 3 m - Antimasking Technology - Reach in open space 1200 m
€144.00
Tax included
Reference SOP-2IRDT-BR
Brand Sopras
Quantity
Available in 24/48h

Free shipping
Sopras SOP-2IRDT-BR - PIR detector, Integrated Ajax Transmitter, Microwave…

Sopras SOP-2IRDT-BR - PIR detector, Integrated Ajax Transmitter, Microwave…

€144.00

You might also like

  • Sopras
  • Outdoor curtain detector with low consumption
  • Bidirectional
  • Double technology: double PIR and microwave with antimasking
  • Detection: Range 3 m / 35º
  • Motion detection indicator
  • Tamper-resistant opening
  • Range in open space 1200 m
  • Power supply 1 battery ER14505 3.6 V
  • Outdoor use
  • Degree of protection IP54
  • Includes mounting bracket
  • Colour brown
  • Includes Ajax transmitter for wireless communication with Ajax panels

Features

  • PIR detector
  • Integrated Ajax Transmitter
  • Microwave and double PIR curtain type
  • Detection range 3 m
  • Antimasking Technology
  • Reach in open space 1200 m

Specs

Technology Microwave y doble PIR tipo cortina con Antimasking
Microondas 24 GHz / Adjustable
PIR lens 2 zones
Detection range 3 m / 35º
Frequency 868 MHz Jeweller with Ajax transmitter included
Transmission distance ≤ 1200 m in open space
Masking Available
Tamper-resistant opening Available
LEDs indication Alarm
DIP switch configuration Antimasking, AND/OR function, impulse counter (1 or 2), Microwave and LEDs
Wired outputs Alarm, tamper and transmitter power supply
Power 1 battery ER14505 3.6V
Consumption Minimal consumption (Rest: 30 uA / Maximum: 20 mA)
Temp. operation -20 ºC ~ 50 ºC
Degree of protection IP54
Dimensions 295 (H) x 37 (W) x 32 (D) mm
Weight 150 g

Package content

  • PIR detector
  • Instructions Manual
  • Mounting material
Sopras

Data sheet

Weight
150 g
Power
1 battery ER14505 3.6V
Technology
Microwave y doble PIR tipo cortina con Antimasking
Detection range
3 m / 35º
Frequency
868 MHz Jeweller with Ajax transmitter included
Masking
Available
LEDs indication
Alarm
Temp. operation
-20 ºC ~ 50 ºC
Degree of protection
IP54
Transmission distance
≤ 1200 m in open space
Dimensions
295 (H) x 37 (W) x 32 (D) mm
PIR lens
2 zones
Tamper-resistant opening
Available
Consumption
Minimal consumption (Rest: 30 uA / Maximum: 20 mA)
Wired outputs
Alarm, tamper and transmitter power supply
DIP switch configuration
Antimasking, AND/OR function, impulse counter (1 or 2), Microwave and LEDs
Microwave
24 GHz / Adjustable
