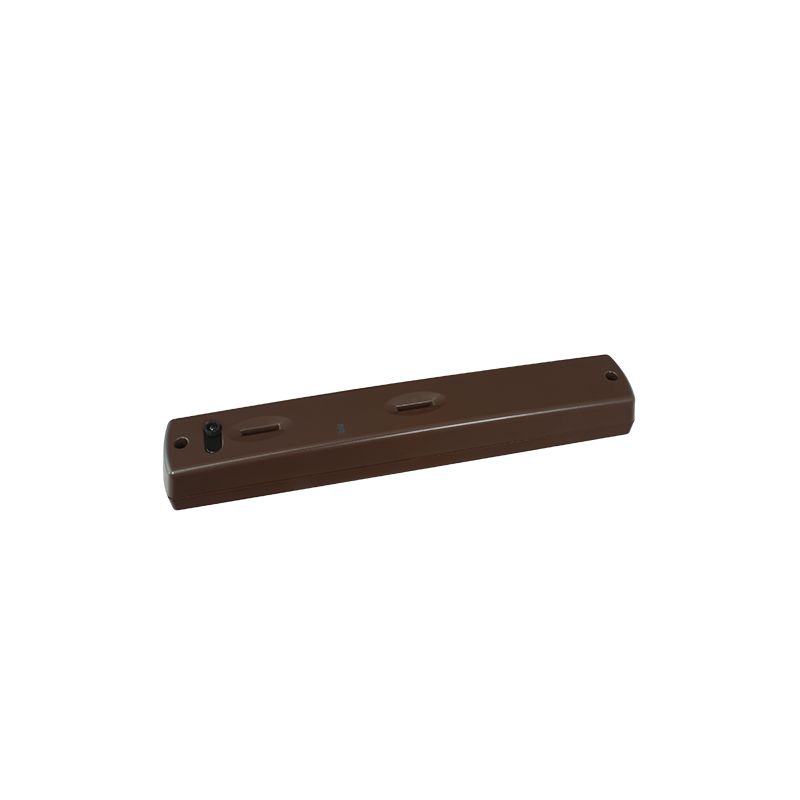

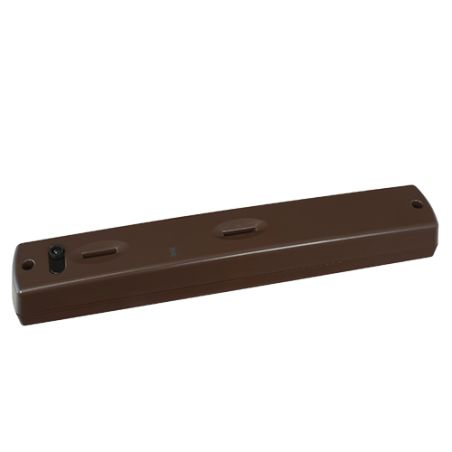

Sopras SOP-2IR-BR - PIR detector, Integrated Ajax Transmitter, Double PIR…

Name: Orbita Digital
Address: Dr. Francisco Grande Covian, 3, Oviedo, Asturias, 33011
Price range: €-€€€€

PIR detector - Integrated Ajax Transmitter - Double PIR curtain type - Detection range 3 m - Antimasking Technology - Reach in open space 1200 m

€90.00

Tax included

Reference SOP-2IR-BR

Brand Sopras

€90.00

BATT-ER14505 -

Quick view

Technology	Double PIR curtain detector with Antimasking
PIR lens	2 zones
Detection range	3 m / 35º
Frequency	868 MHz Jeweller with Ajax transmitter included
Transmission distance	≤ 1200 m in open space
Masking	Available
Tamper-resistant opening	Available
LEDs indication	Alarm
DIP switch configuration	Antimasking, AND/OR function, pulse counter (1 or 2) and LEDs
Wired outputs	Alarm, tamper and transmitter power supply
Power	1 battery ER14505 3.6V
Consumption	Minimal consumption (Rest: 29 uA / Maximum: 0.9 mA)
Temp. operation	-20 ºC ~ 50 ºC
Degree of protection	IP54
Dimensions	295 (H) x 37 (W) x 32 (D) mm
Weight	150 g

Brand Sopras

Weight: 150 g
Power: 1 battery ER14505 3.6V
Technology: Double PIR curtain detector with Antimasking
Detection range: 3 m / 35º
Frequency: 868 MHz Jeweller with Ajax transmitter included
Masking: Available
LEDs indication: Alarm
Temp. operation: -20 ºC ~ 50 ºC
Degree of protection: IP54
Transmission distance: ≤ 1200 m in open space
Dimensions: 295 (H) x 37 (W) x 32 (D) mm
PIR lens: 2 zones
Tamper-resistant opening: Available
Consumption: Minimal consumption (Rest: 29 uA / Maximum: 0.9 mA)
Wired outputs: Alarm, tamper and transmitter power supply
DIP switch configuration: Antimasking, AND/OR function, pulse counter (1 or 2) and LEDs
