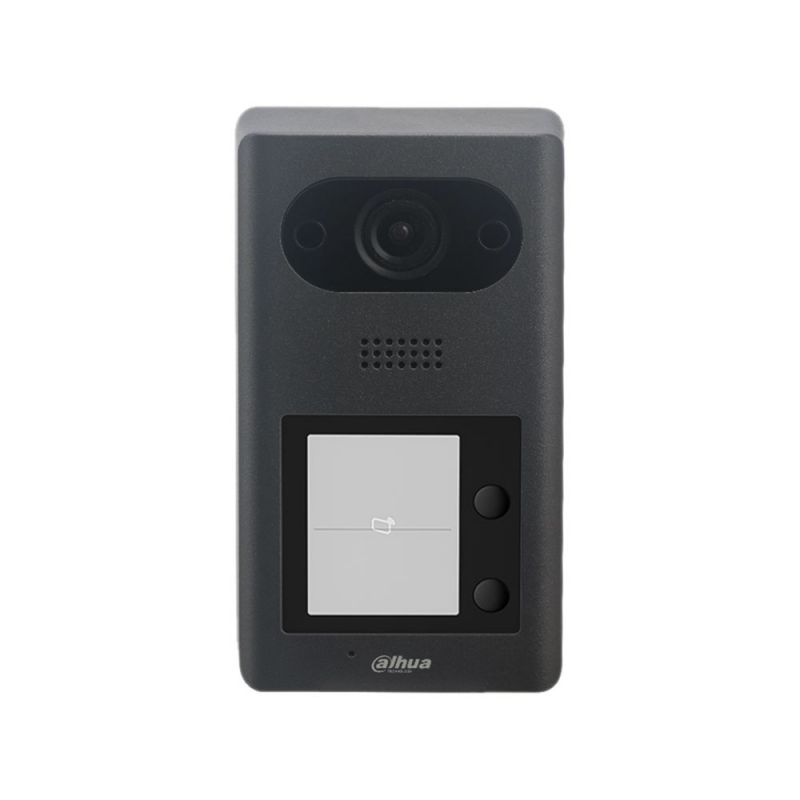

Dahua VTO3211D-P2-S2. SIP Dahua video door entry station suitable for outdoors. Aluminum alloy shell. -30 ° C ~ + 60 ° C operating temperature. Protection degree IP65 (requires silicone sealing). IK08 vandal protection. IR illumination and night vision. Unlock by card, unlock by APP and unlock from indoor monitors. Two-way audio and voice call through the app. Capacity of up to 10,000 cards. Sabotage alarm. Supports standard PoE. Control two locks Videoportero ip dhi-vto3211d-p2-s2.

Characteristics

•     1 / 2.8 "CMOS camera, 2 megapixel
•     Wide field of view
•     Night vision and voice prompt
•     Video and audio messages
•     Remote intercom with mobile app
•     Protection degree IP65 (apply silica gel [liquid sodium silicate is recommended] in the gaps between the device and the wall)
•     IK08 Vandal Protection
•     Zinc Alloy Panel
•     Surface mount

•     Only compatible with IP devices with FW SIP 2.0




  Specs



•     Embedded processor
•     Embedded Linux operating system
•     2 mechanical call buttons
•     H.264 video compression
•     Image Sensor 1 / 2.8 "CMOS, 2 Megapixel
•     Low lighting
•     Infrared illumination for night vision
•     Infrared light compensation
•     Day / night mode with ICR filter
•     Viewing angle: 129 ° (H), 74 ° (V), 147 ° (D)
•     WDR 120dB
•     3D noise reduction
•     Video sensor
•     Stream 1: WVGA / 720P / D1 (25/30 ips)
•     Stream 2: CIF / WVGA / QVGA / 1080P / D1 (25/30 ips)
•     Audio compression G.711Mu, G.711u, PCM
•     Two-way audio
•     1 audio input
•     Incorporates speaker
•     Echo suppression and digital noise cancellation
•     Automatic image capture (can only be enabled on indoor monitors)
•     Web configuration
•     IC card reader
•     Up to 10,000 cards
•     Card reading range: 3 ~ 5cm
•     Unlock Modes: Card, App, Indoor Monitor
•     1 RS485 port
•     1 electrical retainer port
•     1 alarm input / 1 output
•     1 exit button port
•     1 door status detection port
•     1 door control port (NC by default)
•     Tamper tamper
•     10M / 100Mbps Ethernet network interface (8-wire flat cable)
•     Network protocols: SIP, P2P, IPv4, DNS, RTSP, RTP, TCP, UDP
•     Onvif compatibility
•     Power supply 12V DC, 1A
•     Consumption: ≤1W (standby), ≤7W (operation)
•     Supports standard PoE
•     Degree of protection IP65 (requires silicone sealing)
•     IK08 Vandal Protection
•     Polycarbonate and aluminum alloy shell, metal frame
•     Surface installation
•     -30C ~ + 60 ° C operating temperature
•     10% ~ 90% relative humidity (non-condensing)
•     Dimensions: 101.14 (W) x 182.04 (H) x 30mm
•     Weight: 660g
