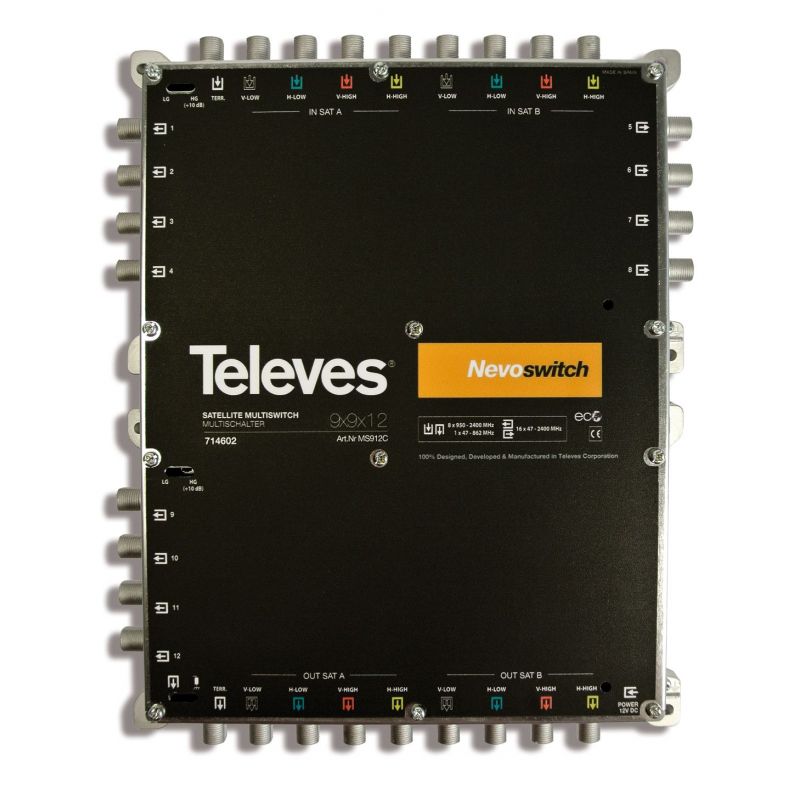

Multiswitch 9x9x12 F Terminal/Waterfall - Neveswitch Televes

Range of 9 input multiswitches available in 8,12,16,24 and 32 user outputs. It has 9 outputs which allow us to expand the number of users by cascading two ore more units. Using a switch, we can load the unit (standalone) or not (cascade configurations).

€382.64
Tax included
Reference televes-714602
Brand Televes
Quantity
Available in 24/48h

Free shipping
Multiswitches 9x9x12 F Terminal/Cascade - Nevoswitch Televes

Multiswitch 9x9x12 F Terminal/Waterfall - Neveswitch Televes

€382.64

Range of 9 input multiswitches available in 8,12,16,24 and 32 user outputs. It has 9 outputs which allow us to expand the number of users by cascading two ore more units. Using a switch, we can load the unit (standalone) or not (cascade configurations).

The range includes standard multiswitches and QUAD compatible versions.

A 9x line amplifier (8+1 terrestrial) is included in this range, with 25dB average gain for Satellite inputs and 26 dB gain for Terrestrial with DC pass.

Highlights

  • Chassis made of zamak: radiation inmune.
  • Suitable for star/cascade system configurations.
  • ECO mode, thanks to the ECO system, the consuptiom decreases as the number of users is reduced.
  • Selectable IF gain: +10dB for each group of 8 users to balance the output signals.

Features

  • Small size and compact design: make teh most of space to accomodate more TV subscribers.
  • Independent amplification of every feed: 8 SAT + 1 terrestrial.
  • Independent output level adjustment, except QUAD Compatible units.
  • Adjustable gain and equalization.
  • Multiple poweting options: Jack, VLow, Terrestrial Input/Output and user outputs.
  • Cascable and Standalone configuration: one multiswitch, many configurations.

Specifications

Reference 714602
Type 9x9x12
 Input Level dBµV SAT  112
RF  90
 Through Losses dB SAT  3,5...10
RF  4
RET 6
 Tap Losses
 1..8 / 9..16 / 17..24 / 25..322		 dB (typ.) SAT1 0/4/-/-
RF 4/6/-/-
RP 34/37/-/-
 Powering Vdc  PSU Lines 12
Receiver 12-18
 Isolation dB H/V  >30
Users >25
 DC Pass In-Out / Out-In
 DC Consumption mA PSU Low Gain3 85
High Gain 155
Receiver 35
 GENERAL
 Protection Index IP   20
 Temperature Range ºC   –5….+45 ºC
 Weight g   1500
 Dimensions (xyz) mm   208x253x30

1    LG - 10dB.
2    @ 2400 MHz; -5 dB @ 950 MHz.
3    Charged output: +45mA.
