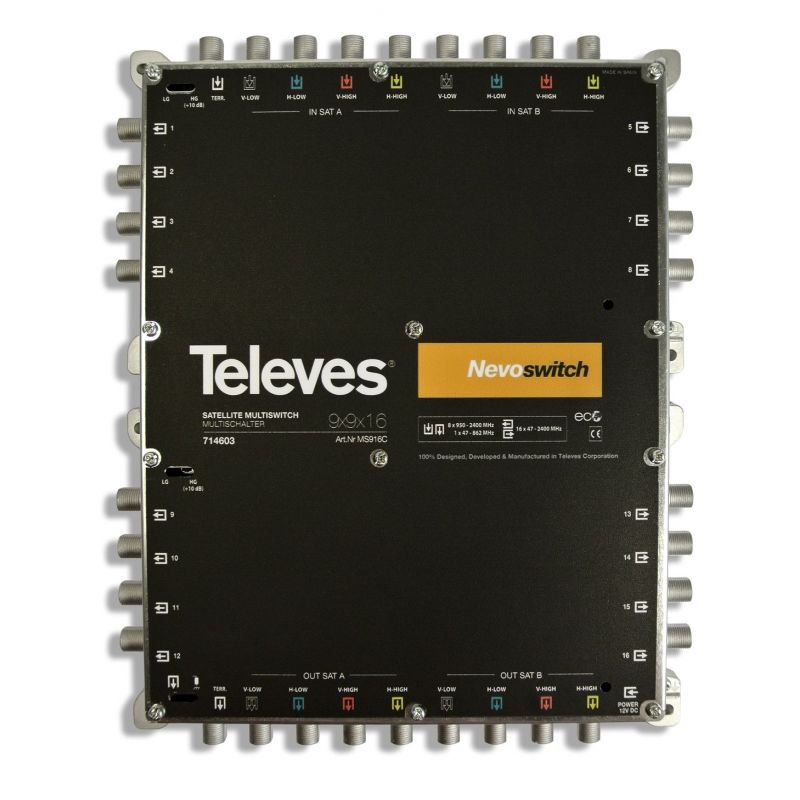

Multiswitches 9x9x16 F Terminal/Cascade - Nevoswitch Televes
search
  • Multiswitches 9x9x16 F Terminal/Cascade - Nevoswitch Televes

Multiswitch 9x9x16 F Terminal/Cascada - Nevoswitch Televes

Multiswitches with 9 inputs and 16 outputs. They have 9 signal extension outputs to develop cascade installations and thus increase the number of users.

The type of application (star or waterfall) is selected using a switch.

€437.31
Tax included
Reference televes-714603
Brand Televes
Quantity
Available in 24/48h

Free shipping
Multiswitches 9x9x16 F Terminal/Cascade - Nevoswitch Televes

Multiswitch 9x9x16 F Terminal/Cascada - Nevoswitch Televes

€437.31

CASCADABLE 9 WIRE MULTISWITCHES RANGE

EUROPEAN QUALITY AND DESIGN

THE BEST CHOICE FOR IRS SYSTEMS

Range of 9 input multiswitches (8 satellite polarities + Freeview),  and 16 outputs. Expand the number of users by cascading two or more units. Small and compact design to provide an easy and quick installation.

The range includes a 9x line amplifier with 25 dB average gain for Satellite inputs and 27 dB gain for Terrestrial with DC pass.

75 ohms switch included to load the unit (standalone) or not (cascade configurations).

Highlights

  • Radiation inmune thanks to its zamak made chassis.
  • All switch references are valid for standalone, star or cascade configuration.
  • Selectable IF gain (+10 dB) for each group or 8 users to balance the output signals.
  • Multiple powering options: mains and line powered.
  • ECO mode: the overall consumption is reduced as the number of users decreases.

Features

  • Small sized design: Make the most of space to accomodate more TV subscribers.
  • Use the same multiswitch in either star/cascade or standalone configuration.
  • Independent amplification of every feed (8 satellite plus Freeview).
  • Multiple powering options: mains and line powered.
  • Adjustable gain and equalization to achieve the best performance for every system's requirements.

Specifications

Reference 714603
 Type   9x9x16
 Input level dBµV SAT  102
RF  104
 Through losses dB SAT  6
RF  4
 Tap losses
 1..8 / 9..16 / 17..24 / 25..32 *1		 dB (typ.) SAT 3 / 6 / . / .
RF 2 / 5 / . / .
RP 40
 Powering Vdc    12
 Isolation dB H/V  >30
User  >25
 DC Pass In-Out / Out-In (3)
 DC consumption mA PSU Low Gain 80
High Gain Not charged 135
Charged 225
Receiver 33
 Temperature ºC   –5….+45 ºC
 Weight g   1500
 Dimensions (Wid x Hei x Dep) mm   208x253x30
