SCALABLE RANGE OF MULTISWITCHES 9x

EUROPEAN DESIGN, QUALITY AND MANUFACTURE IN MULTI-COMMUNICATORS

COMPACT SOLUTION FOR MULTIPLE USER INSTALLATIONS

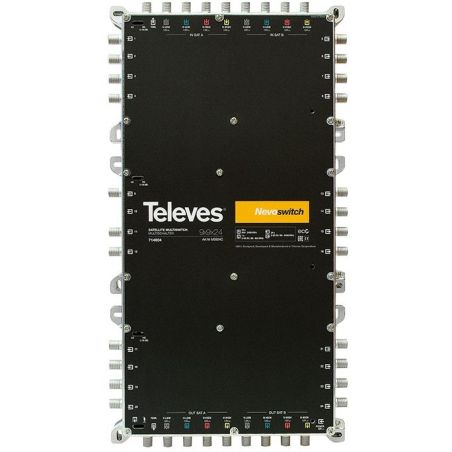

Multiswitches with 9 inputs and 24 outputs. They have 9 signal extension outputs to develop cascade installations and thus increase the number of users.

The type of application (star or waterfall) is selected using a switch.

The range has a 9-input amplifier (8 + terrestrial) with gain of 25dB pre-stressed in sat and 27 dB in terrestrial with power supply.

Highlights

• Radiation inmune thanks to its zamak made chassis.
• All switch references are valid for standalone, star or cascade configuration.
• Selectable IF gain (+10 dB) for each group or 8 users to balance the output signals.
• Multiple powering options: mains and line powered.
• ECO mode: the overall consumption is reduced as the number of users decreases.

Features

• Small sized design: Make the most of space to accomodate more TV subscribers.
• Use the same multiswitch in either star/cascade or standalone configuration.
• Independent amplification of every feed (8 satellite plus Freeview).
• Multiple powering options: mains and line powered.
• Adjustable gain and equalization to achieve the best performance for every system's requirements.

Specifications
