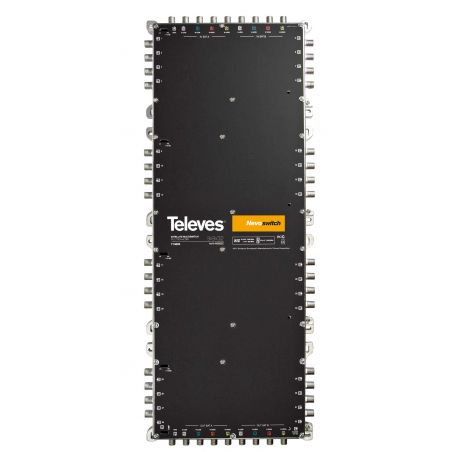

Multiswitch 9x9x32 F Terminal/Waterfall - Nevoswitch Televes

Range of 9 input multiswitches with 32 user outputs. It has 9 outputs which allow us to expand the number of users by cascading two ore more units. Using a switch, we can load the unit (standalone) or not (cascade configurations).

€874.61
Tax included
Reference televes-714605
Brand Televes
Quantity
Available in 24/48h

Free shipping
Multiswitches 9x9x32 F Terminal/Cascade - Nevoswitch Televes

Multiswitch 9x9x32 F Terminal/Waterfall - Nevoswitch Televes

€874.61



SCALABLE RANGE OF MULTISWITCHES 9x

EUROPEAN DESIGN, QUALITY AND MANUFACTURE IN MULTI-COMMUNICATORS

COMPACT SOLUTION FOR MULTIPLE USER INSTALLATIONS

Range of 9 input multiswitches (8 satellite polarities + Freeview),  available in 8, 12, 16, 24 and 32 user outputs. Expand the number of users by cascading two or more units. Small and compact design to provide an easy and quick installation.

The range includes a 9x line amplifier with 25 dB average gain for Satellite inputs and 27 dB gain for Terrestrial with DC pass.

75 ohms switch included to load the unit (standalone) or not (cascade configurations).

Highlights

  • Radiation inmune thanks to its zamak made chassis.
  • All switch references are valid for standalone, star or cascade configuration.
  • Selectable IF gain (+10 dB) for each group or 8 users to balance the output signals.
  • Multiple powering options: mains and line powered.
  • ECO mode: the overall consumption is reduced as the number of users decreases.

Features

  • Small sized design: Make the most of space to accomodate more TV subscribers.
  • Use the same multiswitch in either star/cascade or standalone configuration.
  • Independent amplification of every feed (8 satellite plus Freeview).
  • Multiple powering options: mains and line powered.
  • Adjustable gain and equalization to achieve the best performance for every system's requirements.

Specifications

Reference 714605
 Type   9x9x32
 Input level dBµV SAT  102
RF  104
 Through losses dB SAT  12
RF  8
 Tap losses
 1..8 / 9..16 / 17..24 / 25..32 *1		 dB (typ.) SAT 3 / 6 / 9 / 13
RF 2 / 5 / 7 / 10
RP 40
 Powering Vdc    12
 Isolation dB H/V  >30
User  >25
 DC Pass In-Out / Out-In (3)
 DC consumption mA PSU Low Gain 160
High Gain Not charged 230
Charged 335
Receiver 33
 Temperature ºC   –5….+45 ºC
 Weight g   3100
 Dimensions (Wid x Hei x Dep) mm   208x519x30
