Multiswitches amplifier 9x9 F G4/31/27 Vs 105 - Nevoswitch Televes
search
  • Multiswitches amplifier 9x9 F G4/31/27 Vs 105 - Nevoswitch Televes

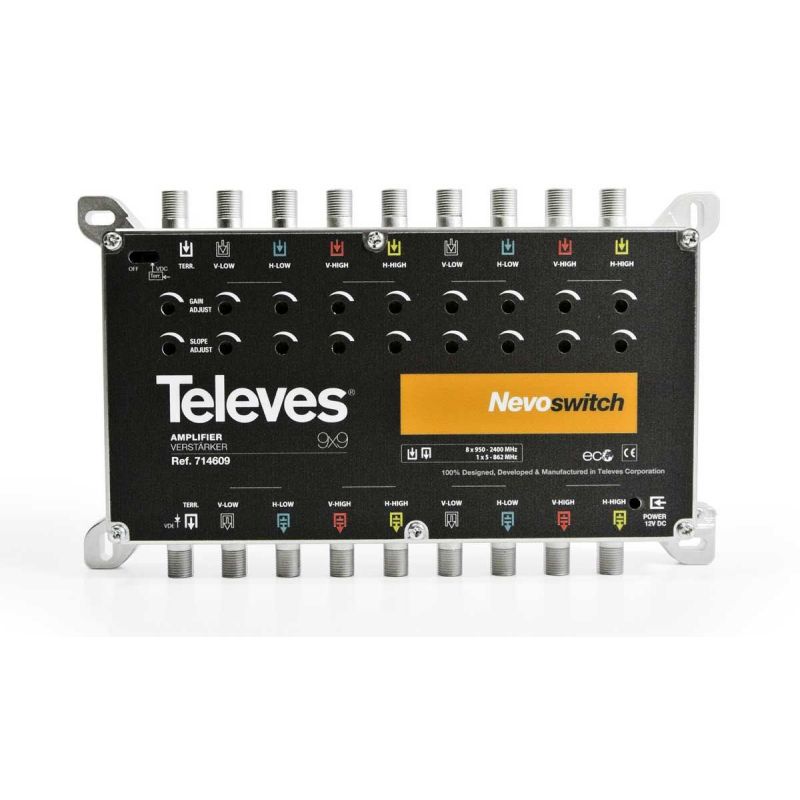

Multiswitch amplifier 9x9 F G4/31/27 Vs 105 - Nevoswitch Televes

CASCADABLE 9 WIRE MULTISWITCHES RANGE

€273.33
Tax included
Reference televes-714609
Brand Televes
Quantity
Available in 24/48h

Free shipping
Multiswitches amplifier 9x9 F G4/31/27 Vs 105 - Nevoswitch Televes

Multiswitch amplifier 9x9 F G4/31/27 Vs 105 - Nevoswitch Televes

€273.33

CASCADABLE 9 WIRE MULTISWITCHES RANGE

EUROPEAN QUALITY AND DESIGN

THE BEST CHOICE FOR IRS SYSTEMS

Range of 9 input multiswitches (8 satellite polarities + Freeview),  available in 8, 12, 16, 24 and 32 user outputs. Expand the number of users by cascading two or more units. Small and compact design to provide an easy and quick installation.

The range includes a 9x line amplifier with 25 dB average gain for Satellite inputs and 27 dB gain for Terrestrial with DC pass.

75 ohms switch included to load the unit (standalone) or not (cascade configurations).

Highlights:
  • Radiation inmune thanks to its zamak made chassis.
  • All switch references are valid for standalone, star or cascade configuration.
  • Selectable IF gain (+10 dB) for each group or 8 users to balance the output signals.
  • Multiple powering options: mains and line powered.
  • ECO mode: the overall consumption is reduced as the number of users decreases.

Main features:

  • Small sized design: Make the most of space to accomodate more TV subscribers.
  • Use the same multiswitch in either star/cascade or standalone configuration.
  • Independent amplification of every feed (8 satellite plus Freeview).
  • Multiple powering options: mains and line powered.
  • Adjustable gain and equalization to achieve the best performance for every system's requirements.

Specs

Reference 714609
 Output Level
 		 dBµV SAT 110
RF 105
 Gain dB SAT 25
RF 27
Regulation 10
Slope 0...7
 Isolation dB   >25
 Powering Vdc   12
 DC Pass In-Out / Out-In
 DC consumption mA   700
 Temperature ºC   –5….+45 ºC
 Weight g   700
 Dimensions (Wid x Hei x Dep) mm   208x120x30
