SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 33SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 2007 AND id_lang = 1 Nevoswitch Multiswitch 13x13x16 F Terminal/Cascade Televes
Multiswitch 13x13x16 F Terminal/Cascade Nevoswitch Televes
search
  • Multiswitch 13x13x16 F Terminal/Cascade Nevoswitch Televes

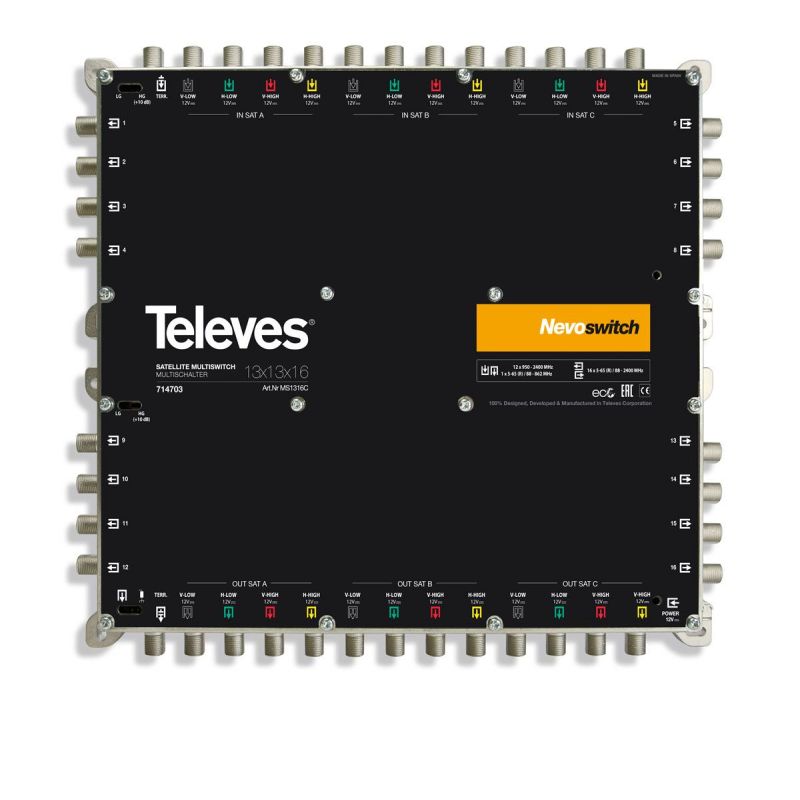

Multiswitch 13x13x16 F Terminal/Cascade Nevoswitch Televes

SCALABLE 13X  MULTISWITCHES RANGE

€655.95
Tax included
Reference televes-714703
Brand Televes
Quantity
Available in 24/48h

Free shipping
Multiswitch 13x13x16 F Terminal/Cascade Nevoswitch Televes

Multiswitch 13x13x16 F Terminal/Cascade Nevoswitch Televes

€655.95

SCALABLE 13X AND 17X MULTISWITCHES RANGE

EUROPEAN QUALITY AND DESIGN

THE BEST CHOICE FOR IRS SYSTEMS

3x and 17x multiswitches range with multiple outputs (8, 12, 16, 24 and 32) with available through outputs to connect several multiswitches in cascade con guration and therefore extend the number of users.

Switch to choose between star and cascade con guration.

Both ranges feature a 13 wires ampli er (12 satellite plus terrestrial) and 17 wires amplifer with 25dB preaccentuated gain on satellite and 25dB gain on terrestrial with through powering.

Highlights:

  • Radiation inmune thanks to its zamak made chassis.
  • All switch references are valid for standalone, star or cascade configuration.
  • Selectable IF gain (+10 dB) for each group or 8 users to balance the output signals.
  • Multiple powering options: mains and line powered.
  • ECO mode: the overall consumption is reduced as the number of users decreases.

Main features:

  • Small sized design: Make the most of space to accomodate more TV subscribers.
  • Use the same multiswitch in either star/cascade or standalone con guration.
  • Independent ampli cation of every feed (8 satellite plus Freeview).
  • Multiple powering options: mains and line powered.
  • Adjustable gain and equalization to achieve the best performance for every system's requirements.

Specs

Reference  714703
 Type 13x13x16
 Frequency range  MHz  SAT 950 ... 2400
 TER 88 ... 862
 RP 5 ... 65
 Input level  dBµV  SAT 112
 TER  90
 Through losses  dB  SAT  3.5 … 10
 RF 4
 RP 6
 Tap losses
 1...8 / 9...16 / 17...24 / 25...32		 dB  SAT1 3/6/-/-
 RF 4/6/-/-
 RP 34/37/-/-
 Isolation  dB H/V >30
Users >25
 DC Pass In-Out / Out-In
 Max. total consumption mA   PSU Low Gain2 85
High Gain2 170
 Receiver  40
 Temperature range  ºC  -5...+45ºC
 Protection level  IP  IP20
 Weight  g 1900
 Dimensions  mm  280x235x30

(1) LG - 10 dB
(2) if output charged => + 65mA
