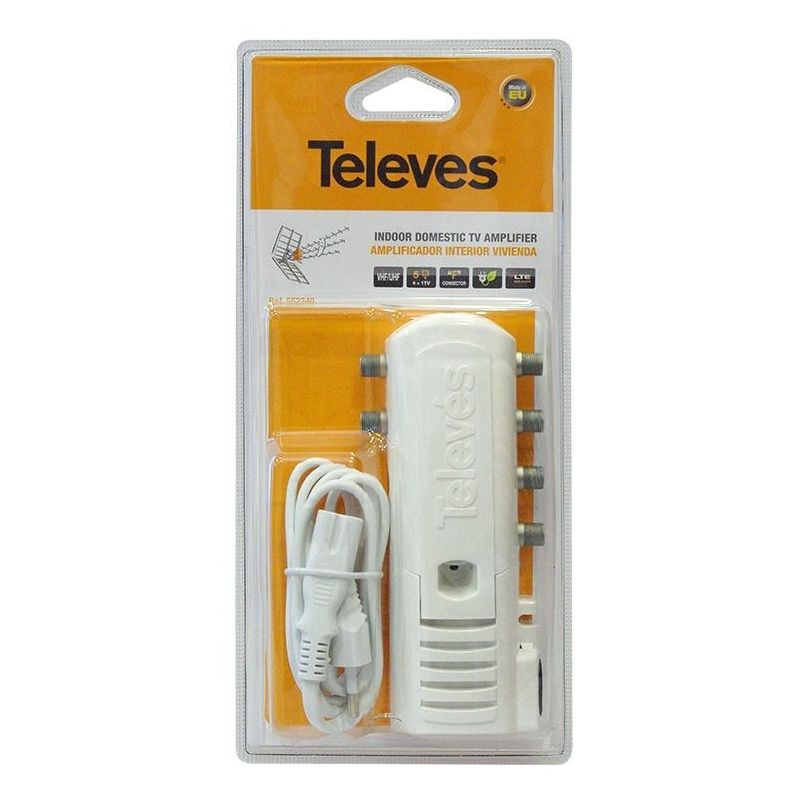

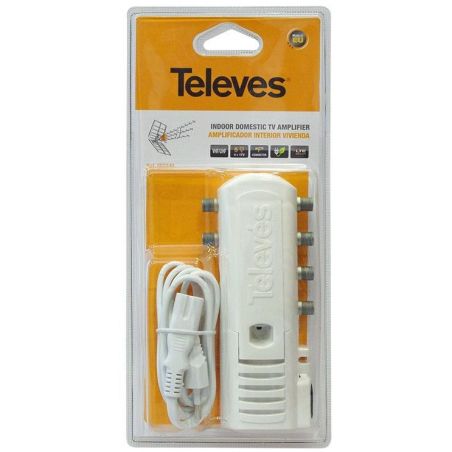

Indoor domestic amplifier 4S + TV (47-790 MHz) Televes 552340
Wide range of domestic amplifiers for MATV applications. Featuring high output level and low power consumption.
This product is replaced by the "F" domestic amplifier 5 outputs (4+TV): VHF/UHF - LTE700/5G Televes
€58.08
Tax included
Reference
televes-552340
Brand
Televes
Indoor domestic amplifier 4S + TV (47-790 MHz) Televes 552340
€58.08
Amplia gama de amplificadores de vivienda para aplicaciones de MATV, caracterizados por su potencia de salida y su bajo consumo.
- Fabricación totalmente automatizada.
- 50% menos de consumo que un amplificador estándar.
- Baja figura de ruido.
- Ganancia ajustable.
- Hasta 6 salidas.
- Preparado para LTE.
Especificaciones
| Referencia | 552340 (5523) | |||||
| Entradas/Salidas | 1 / S1-S2-S3-S4-TV | |||||
| Rango de frecuencias | MHz | 47-790 | ||||
| Ganancia | dB | 16 (S1-S2-S3-S4) | ||||
| 11 (TV) | ||||||
| Regulación ganancia | dB | 12 | ||||
| Nivel de salida (DIN 45004-B) | dBµV | 102 | ||||
| Rechazo entre salidas | dB | >25 | ||||
| Figura de ruido | dB | <5 | ||||
| Tensión de alimentación | Vac | 230±10% | ||||
| Consumo | W | 2 | ||||
| Indice de protección | IP | 20 | ||||
| Dimensiones | mm | 145x60x35 | ||||
| Tipo de conectores | F | |||||
