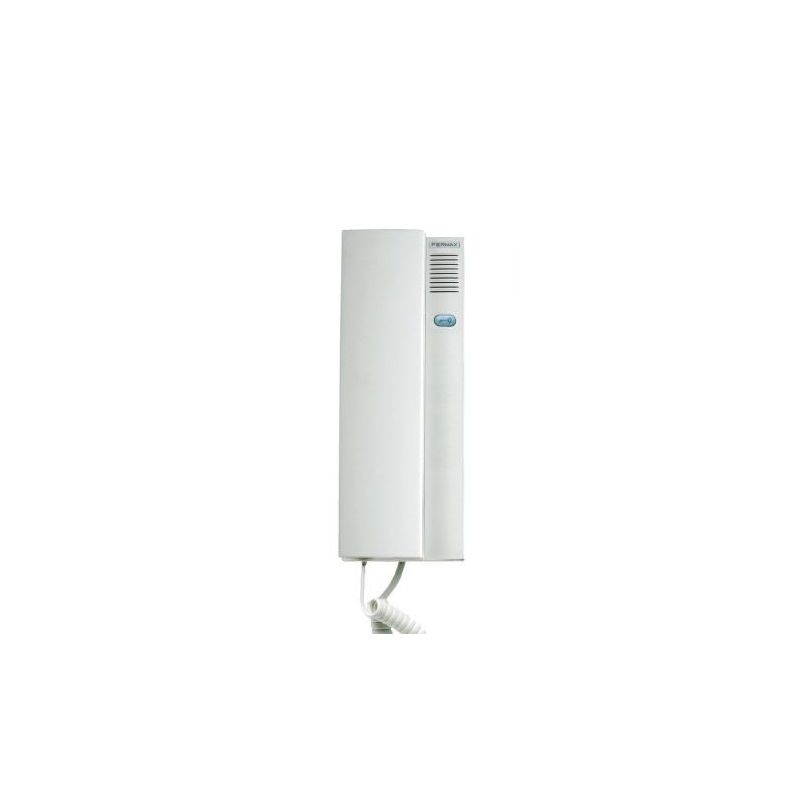

Audio terminal. Installed in the houses, it allows the communication with the street plate and the opening of the door.

The extra-flat Fermax phones are made of high impact ABS plastic with a mirror polished finish for easy cleaning.

The industrial design applied and the components of the highest quality have formed a robust and reliable telephone that will please both the professional and the user.
Wall installation and easy fixing.

Conventional System: uses common wires throughout the installation plus 1 call (or callback) wire per home.

Recommended in small / medium size buildings (up to 50 neighbors approx.), With several entrances and central concierge. For urbanizations with general entrance and inner blocks.

Cabling:
- Doorman: 4 common wires + N (1 call wire per house).
- Video door phone: 7 common wires + 1 coaxial video + N (1 wire of call per house).
Maximum distance in the installation according to the section of the cable used (consult technical manuals)

Specs

• Can replace most other standard telephones, both buzzer call and electronics. Also the old Fermax models.
• Match the connections of the Universal Phone to the corresponding ones of the telephone to be replaced according to the table of equivalences that is included with the equipment.
• It includes:
  • Volume control knobs in both directions.
  • Device to configure electronic call or buzzer.
  • Device for configuration of common mass or separate masses.
• Screwed on surface.
• Power System:
  • Audio: 12 Vac
  • Video: 18 Vdc
• Door release button and concierge call.
• Weight: 0.3563 kg
• Measures of the product packed: 5x26x8 cm
