The 6 filters of these modules allow to adjust and amplify the UHF channels (C21 - C69). The gain of 40 dB at 50 dB switchable and attenuation from 0 to 20 dB allows regulating the output levels of the module. they are specially adapted to process the adjacent channels.

Ideal for medium and large installations: Central TAS selective filtering.

The TRIAX TAS selective filtration plant is the ideal equipment for large collective networks. The modules of 6 filters guarantee a high selectivity and switchable gain, allowing a personalization of the product in reception places with a reduced number of references.

The modules of the Central TAS operate with a voltage of 12 to 24 V DC, allowing its use for the expansion of all headers already assembled or new.

A switching power supply serves up to 20 TAS modules.

Features

• Modular system
• VHF, UHF and SAT modules
• Switchable gain UHF
• Output level up to 126 dB μ V
• UHF modules with 6 filters
• Supply voltage from 12 to 24 VDC
• Power 12 VDC / 4
• Easy installation

Specifications

• Single Channel / Multichannel UHF Amplifier
• Rank: UHF
• Mhz: C 21- C69
• Mixture: YES
• Earning dB: Switchable 40 - 50
• Output Level: 126
• Attenuation: 0-20
• Number of filters: 6
• Connectors: F Female
• Vdc power supply: 12 to 24
• Consumption mA: 200
• Dimensions: 225 x 65 x 30 mm.

TAS models available:

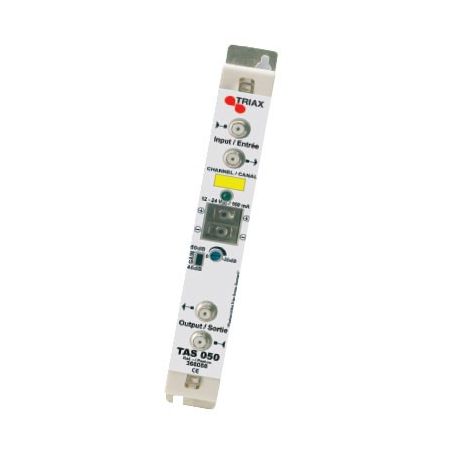

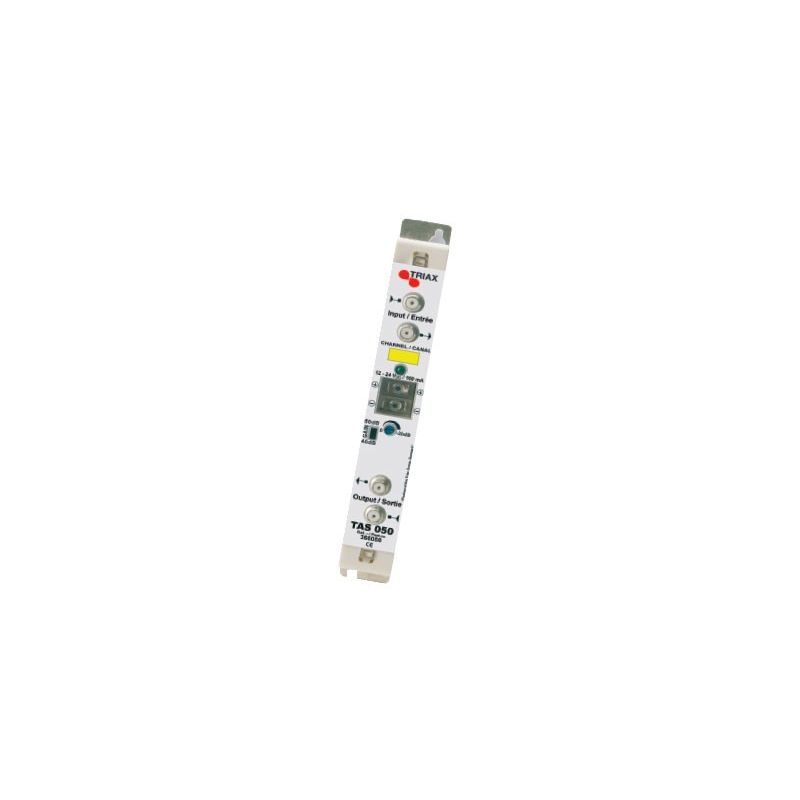

• TAS 050 Mono Channel 324850
• TAS 052 Bicanal 324852
• TAS 053 Tricanal 324853
• TAS 054 four-phase 324854
• TAS 055 Pentacanal 324855

Available accessories:

Example of chassis mounting:
