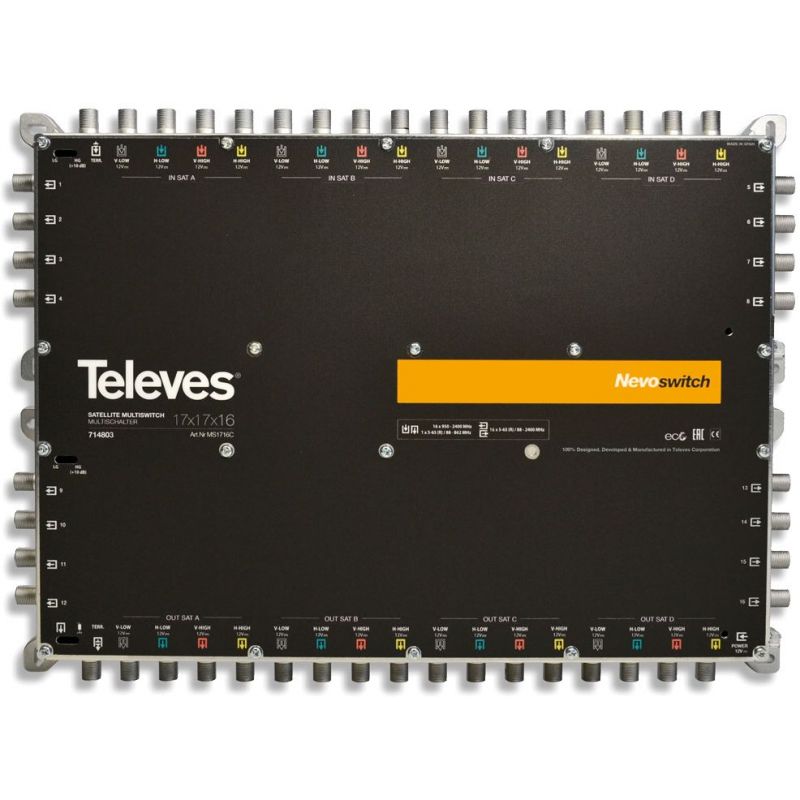

Televes Multiswitch 17x17x16 F Terminal/Cascade Nevoswitch

13x and 17x multiswitches range with 16 outputs with available through outputs to connect several multiswitches in cascade configuration and therefore extend the number of users.

€983.94
Tax included
Reference televes-714803
Brand Televes
Quantity
Available in 24/48h

Free shipping
Nevoswitch Multiswitch 17x17x8 F Terminal/Cascade Televes

Televes Multiswitch 17x17x16 F Terminal/Cascade Nevoswitch

€983.94

SCALABLE 13X AND 17X MULTISWITCHES RANGE

EUROPEAN QUALITY AND DESIGN

THE BEST CHOICE FOR IRS SYSTEMS

13x and 17x multiswitches range with 16 outputs with available through outputs to connect several multiswitches in cascade con guration and therefore extend the number of users.

Switch to choose between star and cascade configuration.

Both ranges feature a 13 wires amplifier (12 satellite plus terrestrial) and 17 wires amplifier with 25dB preaccentuated gain on satellite and 25dB gain on terrestrial with through powering.

Highlights:

  • Radiation inmune thanks to its zamak made chassis.
  • All switch references are valid for standalone, star or cascade configuration.
  • Selectable IF gain (+10 dB) for each group or 8 users to balance the output signals.
  • Multiple powering options: mains and line powered.
  • ECO mode: the overall consumption is reduced as the number of users decreases.

Features

  • Small sized design: Make the most of space to accomodate more TV subscribers.
  • Use the same multiswitch in either star/cascade or standalone configuration.
  • Independent amplification of every feed (8 satellite plus Freeview).
  • Multiple powering options: mains and line powered.
  • Adjustable gain and equalization to achieve the best performance for every system's requirements.

Specifications

Reference  714803
 Type 17x17x16
 Frequency range  MHz  SAT 950 ... 2400
 TER 88 ... 862
 RP 5 ... 65
 Input level  dBµV  SAT 112
 TER  90
 Through losses  dB  SAT  3.5 … 10
 RF 4
 RP 6
 Tap losses
 1...8 / 9...16 / 17...24 / 25...32		 dB  SAT1 3/6/-/-
 RF 4/6/-/-
 RP 34/37/-/-
 Isolation  dB H/V >30
Users >25
 DC Pass In-Out / Out-In
 Max. total consumption mA   PSU Low Gain2 90
High Gain2 170
 Receiver  40
 Temperature range  ºC  -5...+45ºC
 Protection level  IP  IP20
 Weight  g 2400
 Dimensions  mm  350x253x30

(1) LG - 10 dB
(2) if output charged => + 85mA
