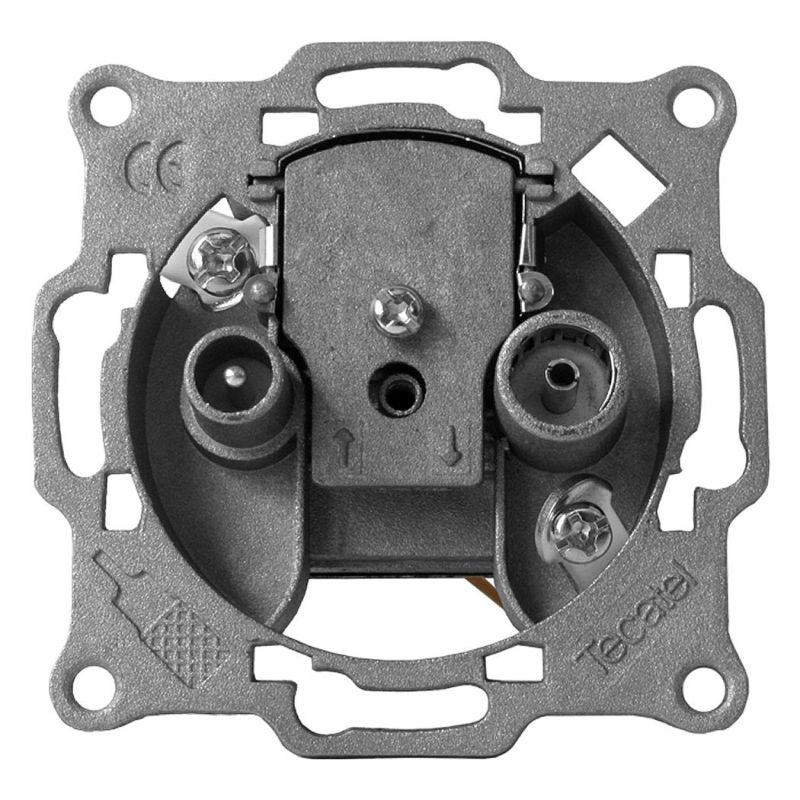

Intermediate socket 5dB 2 TV-SAT outputs. Tecatel TI-0502
Type of shot: Intermediate; No. Outputs: 2 (TV + FM / SAT); Step losses (dB) 5 - 860 MHz: 1.5; Step losses (db) 950-2,400 MHz: 2; Bypass losses (dB) 5 - 860 MHz: 5 + - 1.5; Bypass losses (dB) 950 - 2400 MHz: 5 + - 2,5; Isolation between outputs:> 25 dB; Type of FM connector: IEC 9.5 (m); TV connector type: IEC 9,5 (m); Type of SAT connector: IEC 9.5 (h);
€6.47
Tax included
Reference
tecatel-TI-0502
Brand
Tecatel
Intermediate socket 5dB 2 TV-SAT outputs. Tecatel TI-0502
€6.47
Intermediate socket 5dB 2 Outputs TV - SAT. Ref TI-0502 of Tecatel. These sockets are used in signal distribution from 5 to 2400 MHz. With the four available values, a cascade can be formed with well-equalized signal values. All the models have two connectors, and its fundamental characteristic is that for each connection a different signal is received. Through a connection terrestrial signal is received (TDT and FM radio antenna) and for satellite we have another connection. They also incorporate the frequency range for the return line.
Features
- Way of return.
- Current passage in SAT output.
- Current step OUT-IN.
- Fast connection.
- IEC male connector for TV + FM. IEC female connector for SAT.
Specifications
- No. Outputs: 2 (TV + FM / SAT)
- Step losses (dB) 5 - 860 MHz: 1.5
- Step losses (db) 950 - 2400 MHz: 2
- Bypass losses (dB) 5 - 860 MHz: 5 + - 1,5.
- Bypass losses (dB) 950 - 2400 MHz: 5 + - 2,5.
- Isolation between outputs:> 25 dB
- Type of FM connector: IEC 9.5 (m)
- TV connector type: IEC 9.5 (m)
- Type of SAT connector: IEC 9.5 (h).
