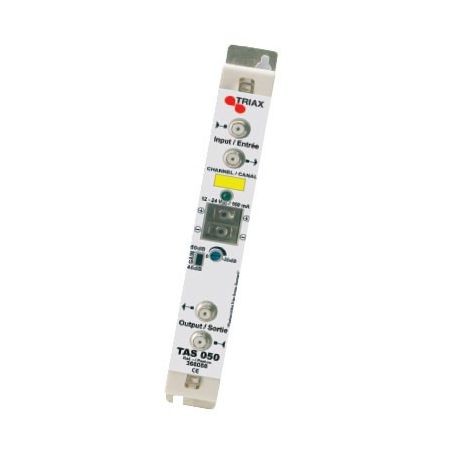

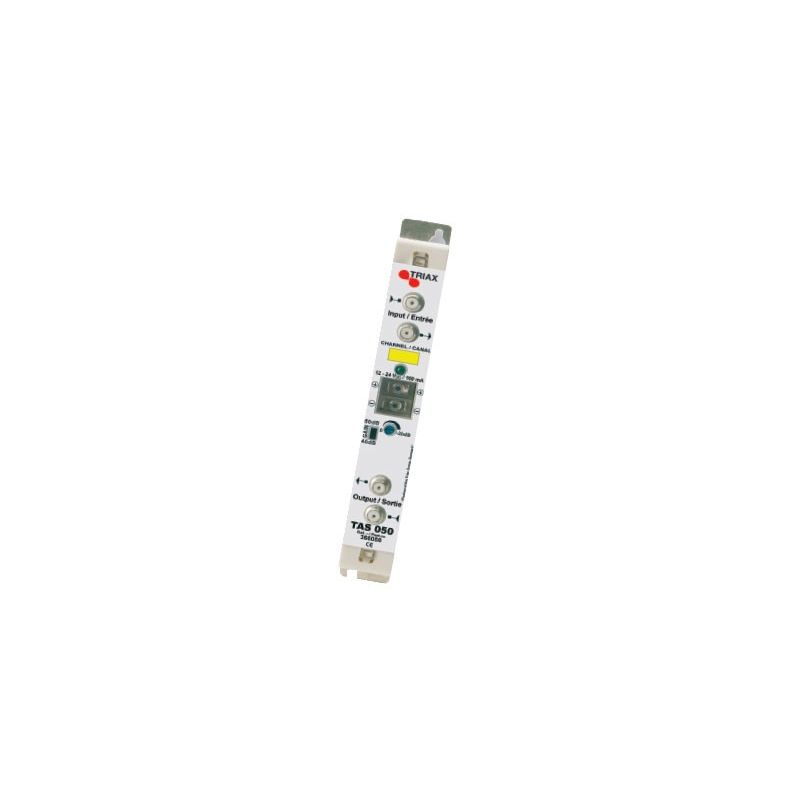

Two-channel amplifier Tas 052 TDT UHF 50dB Triax
The 6 filters of these modules allow to adjust and amplify the UHF channels (C21 - C69). The gain of 40 dB at 50 dB switchable and attenuation from 0 to 20 dB allows regulating the output levels of the module. They are specially adapted to process 2 adjacent channels.
€104.67
Tax included
Reference
triax-324852
Brand
Triax
Two-channel amplifier Tas 052 TDT UHF 50dB Triax
€104.67
The 6 filters of these modules allow to adjust and amplify the UHF channels (C21 - C69). The gain of 40 dB at 50 dB switchable and attenuation from 0 to 20 dB allows regulating the output levels of the module. they are specially adapted to process 2 adjacent channels.
Ideal for medium and large installations: Central TAS selective filtering.
The TRIAX TAS selective filtration plant is the ideal equipment for large collective networks. The modules of 6 filters guarantee a high selectivity and switchable gain, allowing a personalization of the product in reception places with a reduced number of references.
The modules of the Central TAS operate with a voltage of 12 to 24 V DC, allowing its use for the expansion of all headers already assembled or new.
A switching power supply serves up to 20 TAS modules.
Features
- Modular system
- VHF, UHF and SAT modules
- Switchable gain UHF
- Output level up to 126 dB μ V
- UHF modules with 6 filters
- Supply voltage from 12 to 24 VDC
- Power 12 VDC / 4
- Easy installation
Specifications
| Single Channel / Multichannel UHF Amplifier | |
| Rank | UHF |
| Mhz | C 21- C69 |
| Mixture | YES |
| Gain | Switchable 40 - 50 dB |
| Output level | 126 |
| Attenuation | 0-20 |
| Number of filters | 6 |
| Connectors | F Hembra |
| Feeding | 12 a 24 Vcd |
| Consumption | 200 mA |
| Dimensions | 225 x 65 x 30 m |
Available accessories:
Example of chassis mounting:
