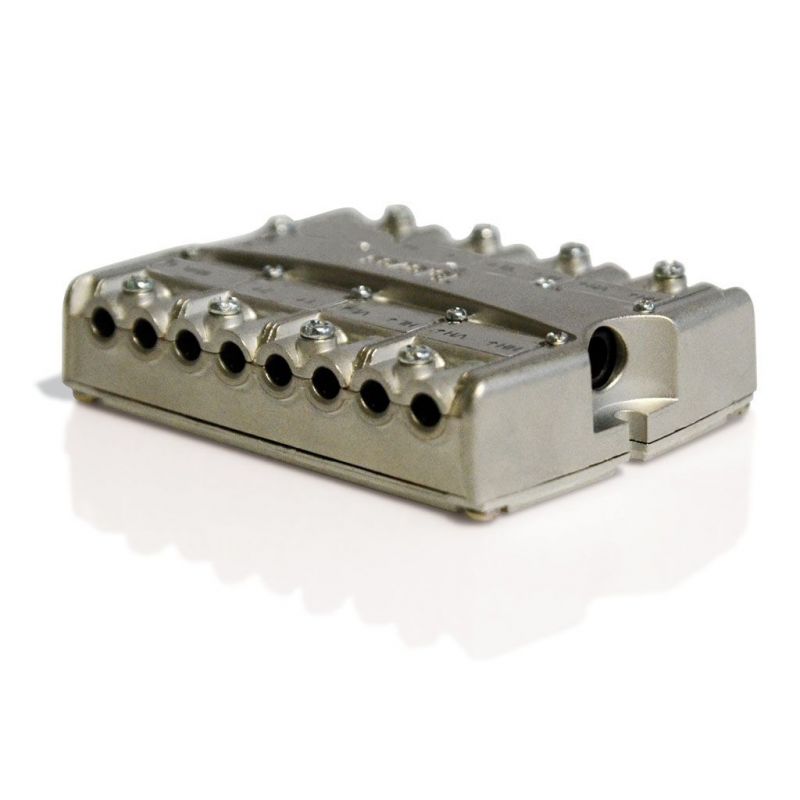

Amplificador 5x5x4 EasySwitch Televes
search
  • Amplificador 5x5x4 EasySwitch Televes
  • Amplificador 5x5x4 EasySwitch Televes

Amplificador 5x5x4 EasySwitch Televes

Multiswitching configurable system based on a unique reference of multiswitch, which can be used to distribute satellite TV signal in small and big shared facilities.

€120.30
Tax included
Reference televes-719101
Brand Televes
Quantity
Available in 24/48h

Free shipping
Amplificador 5x5x4 EasySwitch Televes

Amplificador 5x5x4 EasySwitch Televes

€120.30

Multiswitching configurable system based on a unique reference of multiswitch, which can be used to distribute satellite TV signal in small and big shared facilities.

Tap losses for a particular easyswitch unit are setup by means of DIP switches (Dual In-line Package).

The amplifier of this easyswitch system features automatic output level adjustment as well as an energy saving system.

Features

  • A unique reference of multiswitch, configurable for different attenuations.
  • EasyF chassis with an improved shielding flange and easy to handle.
  • Flexibility for powering the unit: Either from the receiver or from an external PSU.
  • MATV mixing.
  • Switching capacity for 4 polarities, and output to 4 users per multiswitch.
  • SAT + MATV amplifier with automatic level adjustment.
  • System compatible with other ranges of multiswitches, since it features DC pass at all SAT inputs.
  • For distribution network topologies in cascade or star.
  • Up to 10 cascaded multiswitches.
  • Passive return channel 5 - 65 MHz, making it compatible with data and operator networks.
  • Energy saving ECO mode: automatic detection of users that disables power to the LNB and the active stages of satellite IF.

Specs

Reference 719101
 Satellite IF stage
 Frequency range MHz 950-2150
 Gain dB 20...28
 ACG Regulation 20
 Return losses 10
 Switching voltage Vdc -
 Band selection signals KHz -
 Max. ouptut level (EN50083) dBµV 112
 Through losses dB -
 Tao losses (selectable by Dip switches) -
 Rejection between outputs 40
 MATV
 Frequency range  MHz 87-862
 Gain dB 10...14
 ACG Regulation 20
 Return losses 10
 Max. ouptut level (DIN45004B) dBµV 112
 Max. ouptut level (EN50083) 92
 Noise figure dB 6
 Tap losses -
 Tap regulation -
 Through losses 1,5
 Rejection between outputs 20 -
 Return channel
 Frequency range  MHz 5-65
 Attenuation dB 2
 Powering
 Voltage V 12 (Jack)
 Consumption per user mA -
 Power consumption (max.) W 9,6
 ECO mode power consumption 0,8
 Max. LNB current mA 500
 MATV input DC pass( 12 Vdc)  40
 General
 Inputs (HH, HL, VH, VL, MATV) nº 5
 Outputs (HH, HL, VH, VL, MATV) 5
 Outputs for users -
 Weight  gr  200
 Dimensions (Wid x Hei x Dep)  mm  95 x 70 x 30
 Protection level    IP20
