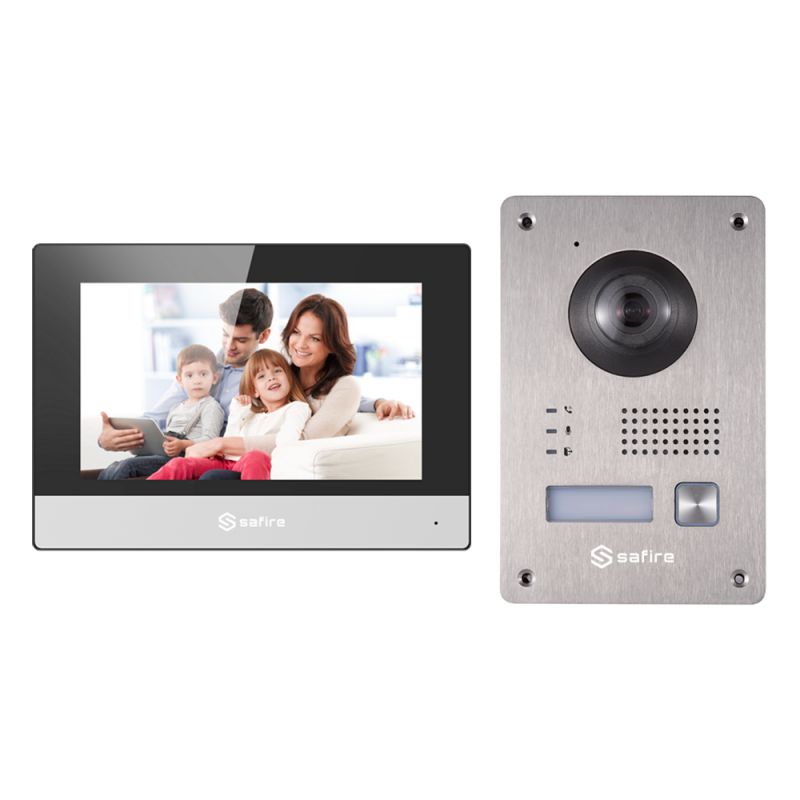

Safire SF-VIK004-S-2 - Video-intercom kit, 2 wire connectivity, Includes…
search
  • Safire SF-VIK004-S-2 - Video-intercom kit, 2 wire connectivity, Includes…

Safire SF-VIK004-S-2 - Video-intercom kit, 2 wire connectivity, Includes…

Video-intercom kit - 2 wire connectivity - Includes panel and monitor - Hub Converter integrated in the Monitor - Mobile App with P2P - Surface or flush mounting
€400.00
Tax included
Reference SF-VIK004-S-2
Brand Safire
Quantity
In Stock

Free shipping
Safire SF-VIK004-S-2 - Video-intercom kit, 2 wire connectivity, Includes…

Safire SF-VIK004-S-2 - Video-intercom kit, 2 wire connectivity, Includes…

€400.00

You might also like

  • Safire
  • Intercom Kit
  • 2 wire connectivity
  • Kit consisting of: External video door entry panel for surface with camera 2Mpx
  • Interior monitor with 7" TFT LCD screen
  • 2 thread to IP converter integrated in the monitor
  • Aluminium alloy surface IP65
  • Monitoring via App
  • Only one board and one monitor per installation is valid

Features

  • Video-intercom kit
  • 2 wire connectivity
  • Includes panel and monitor
  • Hub Converter integrated in the Monitor
  • Mobile App with P2P
  • Surface or flush mounting

Specs

Panel
Brand Safire
Model SF-VI101-2H
Operating system LINUX OS
Image sensor Low Illumination 2 MP IR
Image Functions BLC / WDR / DNR
Viewing angle D: 144º H:95º
Audio Bidirectional audio with microphone and speaker
Keypad Mechanical button with LED backlit name-tag
Outputs 2 of relay
Inputs 2 inputs
Remote access Mobile phone application
Network interface TCP/IP
Power Through the monitor
Degree of protection IP65
Material Stainless steel
Temp. operation -40º C ~ +60º C
Dimensions 169 (H) x 110 (W) x 31 (D) mm
Weight 476 g

Monitor
Brand Safire
Model SF-VIDISP01H-7W2
Operating system LINUX OS
LCD 7" 1024x600, Capacitive
Operation mode Tactile Buttons
Inputs 8 Configurable alarm entries
Audio Two-way audio with microphone and speaker with noise reduction
Remote access Mobile phone application
Network interface Via the 2 wire system / WiFi 802.11b/g/n
Power 24VDC
Temp. operation -10º C ~ +55º C
Dimensions 200 (H) x 140 (W) x 23.6 (D) mm
Weight 336 g

Package content

  • Video intercom panel for surface mounting
  • Interior monitor
  • Power supply
  • Surface bracket
  • Flush mount bracket
  • Monitor bracket
  • Cables and quick guide

Data sheet

Weight
336 g
476 g
Power
24VDC
Through the monitor
Temp. operation
-10º C ~ +55º C
-40º C ~ +60º C
Degree of protection
IP65
Dimensions
169 (H) x 110 (W) x 31 (D) mm
200 (H) x 140 (W) x 23.6 (D) mm
Inputs
2 inputs
8 Configurable alarm entries
Outputs
2 of relay
Material
Stainless steel
Audio
Bidirectional audio with microphone and speaker
Two-way audio with microphone and speaker with noise reduction
Operating system
LINUX OS
Image sensor
Low Illumination 2 MP IR
Viewing angle
D: 144º H:95º
Remote access
Mobile phone application
Network interface
TCP/IP
Via the 2 wire system / WiFi 802.11b/g/n
LCD
7\" 1024x600, Capacitive
Operation mode
Tactile Buttons
Image Functions
BLC / WDR / DNR
Keypad
Mechanical button with LED backlit name-tag
