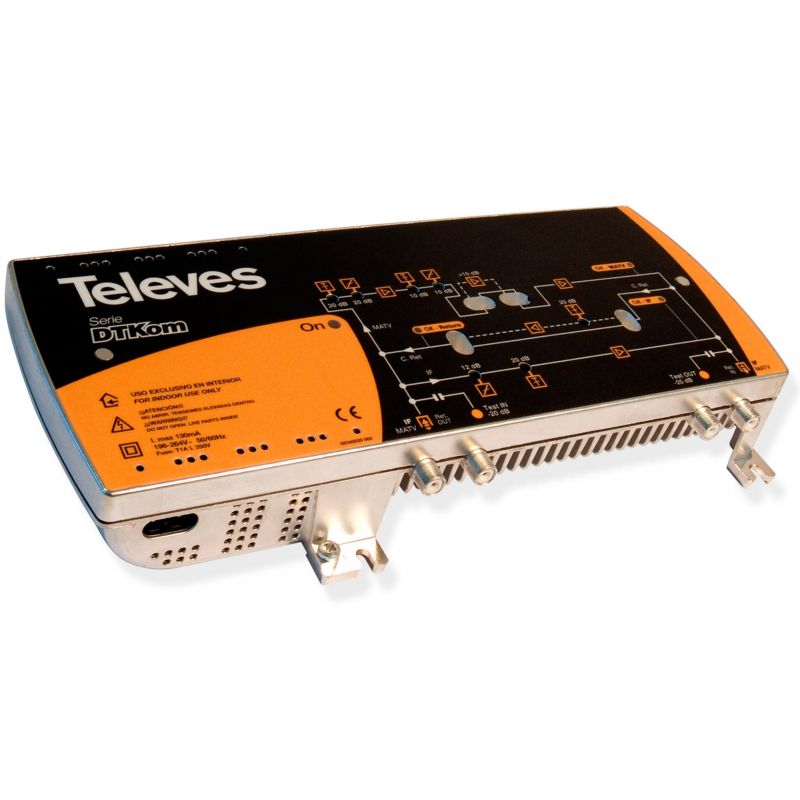

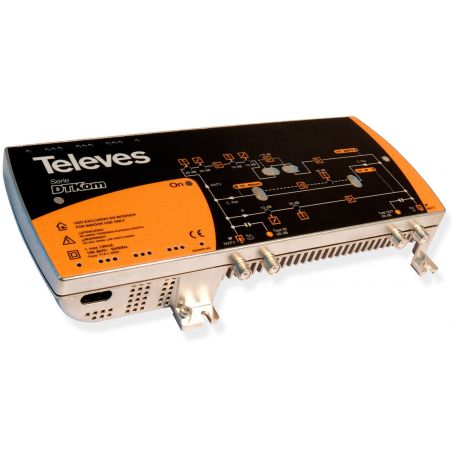

Televes DTKom: Launch and distribution amplifier DTKom 1I/1O “F” RET(5..65)/MATV(1G) Vo129
DTKom serie launch and distribution amplifier is designed to CATV operators and is suitable with DOCSIS settings thanks to his expanded band witdh. It has a switching-mode return patch (active or passive) so this can be used in CoaxData networks.
€449.61
Tax included
Reference
televes-451203
Brand
Televes
Televes DTKom: Launch and distribution amplifier DTKom 1I/1O “F” RET(5..65)/MATV(1G) Vo129
€449.61
DTKom serie launch and distribution amplifier is designed to CATV operators and is suitable with DOCSIS settings thanks to his expanded band witdh. It has a switching-mode return patch (active or passive) so this can be used in CoaxData networks.
Main features
- Configurable gain 30 / 40dB
- Direct Channel until 1GHz
- Passive or active return path 5 - 65MHz
- Equipped with equalizer, interstage equalizer and gain adjustment control.
- Designed with Power Doubling Technology (129 dBμV DIN45004B)
Specs
| Reference | 451203 | ||
| Band | MHz | 87-1006 | 5-65 |
| Gain | dB | 30/40 | 28/-3 |
| Flatness | dB | ±1 | ±1 |
| Maximum Output level | dBμV | 129 DIN45004B 119 EN50083 (IMD2) 126 EN50083(IMD3) |
129 DIN45004B 119 EN50083 (IMD2) 126 EN50083(IMD3) |
| Noise figure | dB | 8 | 6 |
| Interstage equalizer | dB | 0-10 | - |
| Equalizer | dB | 0-10 | 0-20 |
| Attenuator | dB | 0-20 | - |
| Main voltage | VAC | 99-253 | |
| AC Power Comsumption | W | 16 | |
| Protection Index | IP | 20 | |
| Dimensions (W x Hx D) | mm | 280 x 142 x 48 | |
| Weight | g | 2450 | |
Additional information
Notice: Undefined index: category in /var/www/html/var/cache/prod/smarty/compile/layouts_layout_full_width_tpl/70/4e/f5/704ef5ee69ab552287a67b10a070f4285c0f2b78_2.file.product.tpl.php on line 701
Notice: Trying to get property of non-object in /var/www/html/var/cache/prod/smarty/compile/layouts_layout_full_width_tpl/70/4e/f5/704ef5ee69ab552287a67b10a070f4285c0f2b78_2.file.product.tpl.php on line 701
DTKom serie launch and distribution amplifier is designed to CATV operators and is suitable with DOCSIS settings thanks to his expanded band witdh. It has a switching-mode return patch (active or passive) so this can be used in CoaxData networks.
