  • -45%
search

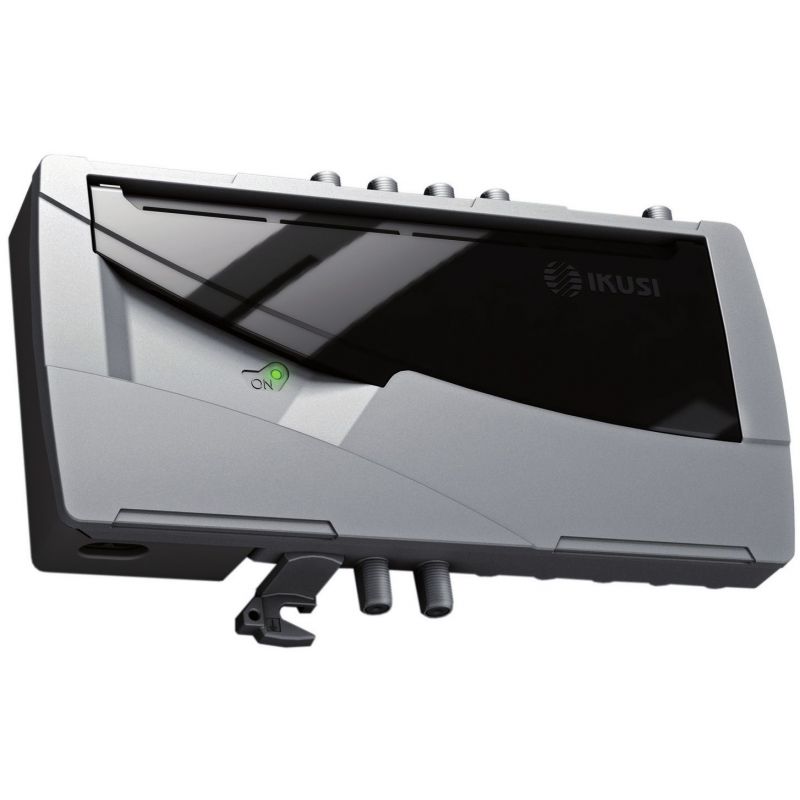

Ikusi NBS-801: Shielded multi-band amplifier 1 input 1 output 42 dB

Ground and Satellite Amplification Center 1 entrance and 1 exit. VHF / UHF Gain = 42 dB, Output level = 118 dBμV. High power broadband power stations, for amplification of terrestrial signals in small collective installations.

€93.50 €170.01 Save 45%
Tax included
Reference ikusi-3531
Brand Ikusi
Quantity
Last items in stock

Free shipping

Ikusi NBS-801: Shielded multi-band amplifier 1 input 1 output 42 dB

€93.50 €170.01 Save 45%

Ground and Satellite Amplification Center 1 entrance and 1 exit. VHF / UHF Gain of 42 dB and Output level of 118 dBμV. High power broadband power stations, for amplification of terrestrial signals in small collective installations.

Features

  • High power broadband power stations, for amplification of terrestrial and satellite signals in small collective installations.
  • Inter-stage input attenuators.
  • Power supply by switched source, in extractable box.
  • Adjustment of slope adjustment by insertion of bridge or potentiometer.
  • For all models, in the UHF inputs, there will be a system (through insertion of a small bridge) that allows switching the higher frequency of UHF between 862 MHz (current limit) and 790 MHz (new limit of the "digital dividend" ).
  • Zamak box with protective cover of the adjustment elements. Connectors F.
  • Interior assembly and wall fixing.

Specifications

MODELO NBS-801
REF. 3531
Entradas 1
Banda de frecuencias MHz 45-862 / 45-790 *
Ganancia dB 42
Regulación ganancia dB 0 - 18
Regulación de pendiente dB 0 - 12
Ondulación en banda dB ±2
Salidas 1
Test de salida dB -30
Nivel de salida dBμV TV: 118
(DIN-45004B IMD -60 dB)
Figura de ruido dB 6
Pérdidas retorno entrada/salida dB 10
Tensión/corriente preamplificador mástil   12-24V / 100mA
Alimentación VAC 240
(+10% -15%)
Consumo W 11
Dimensiones (ancho x alto x prof.) mm 230 x 145 x 43

Información adicional

Data sheet

Installation manual
