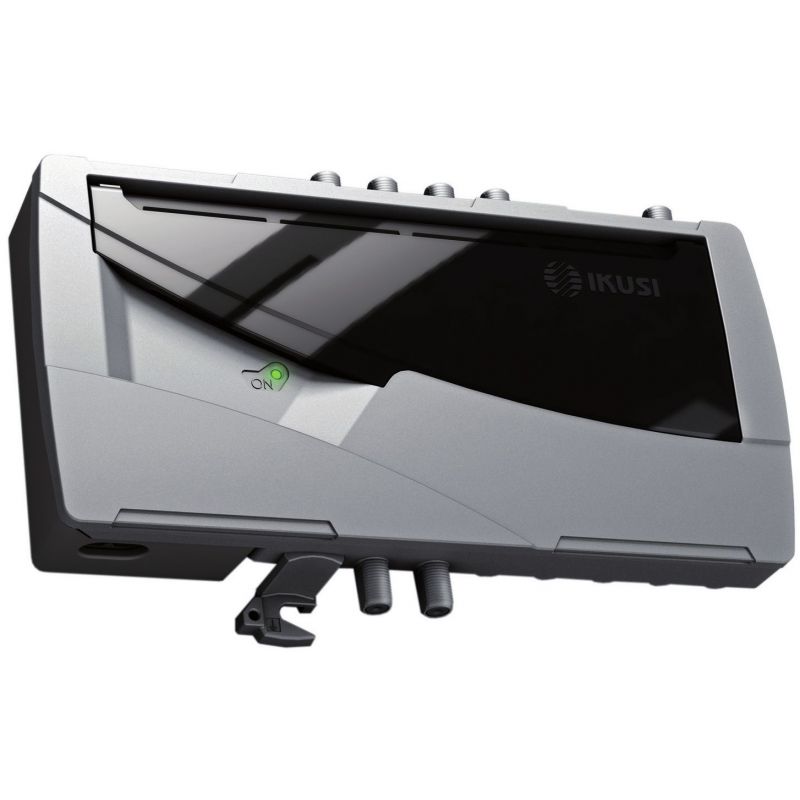

Ikusi NBS-604: Armored Multiband Amplifier Center 4 input 1 output 36dB

Multiband terrestrial and satellite amplifier center 4 input and 1 output. BI/FM-BIII/DAB-2xUHF (112dBµV). Medium-power broadband stations for amplification of terrestrial signals in small collective installations.

€129.23
Tax included
Reference ikusi-3529
Brand Ikusi
Quantity
Out-of-Stock

Free shipping

Central Terrestrial Amplification and Satellite 4 inputs and 1 output. BI / FM-BIII / DAB-2xUHF (112dBμV). Medium power broadband power stations, for amplification of terrestrial signals in small collective installations.

Features

  • High power broadband power stations, for amplification of terrestrial and satellite signals in small collective installations.
  • Inter-stage input attenuators.
  • Power supply by switched source, in extractable box.
  • Adjustment of slope adjustment by insertion of bridge or potentiometer.
  • For all models, in the UHF inputs, there will be a system (through insertion of a small bridge) that allows switching the higher frequency of UHF between 862 MHz (current limit) and 790 MHz (new limit of the "digital dividend" ).
  • Zamak box with protective cover of the adjustment elements. Connectors F.
  • Interior assembly and wall fixing.

Specifications

MODELO NBS-604
REF. 3529
Entradas 4
BI/FM-BIII/DAB-2xUHF
Banda de frecuencias MHz BI/FM: 45-112
BIII/DAB: 174-240
2xUHF: 470-862 / 470-790
Ganancia dB BI/FM: 36
BIII/DAB: 36
2xUHF: 39
Regulación ganancia dB 0 - 18
Regulación de pendiente dB -
Ondulación en banda dB BI/FM: ±2
BIII/DAB: ±2
2xUHF: ±1,5
Salidas 1
Test de salida dB -30
Nivel de salida dBμV TV: 112 (DIN-45004B IMD -60 dB)
Figura de ruido dB BI/FM: 7
BIII/DAB: 7
2xUHF: 8
Pérdidas retorno entrada/salida dB TV: 10
Tensión/corriente preamplificador mástil   UHF2: 12-24 V / 100 mA
Alimentación VAC 240 (+10% -15%)
Consumo W 8
Dimensiones (ancho x alto x prof.) mm 230 x 145 x 45
