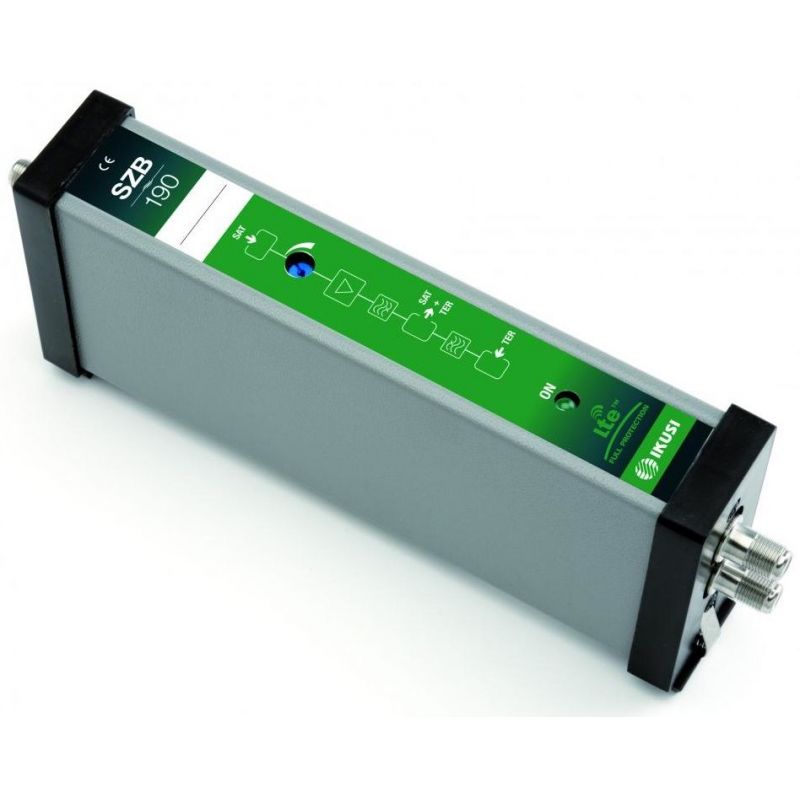

Amplifier / Combiner SAT-IF, Gain 33-40dB, Output Level 120dBμV

Main features

• Preferential use with the SZB, MZB and MZ6 terrestrial single-channel processing headends. Mounting as any other module.
• 1 satellite input 950-2150 MHz with adjustable gain and sloped response to compensate for cable loss; 1 terrestrial coupling input 5-862 MHz; 1 satellite+terrestrial output.
• Automatic power connection, either via contact terminal (SZB application) or via terrestrial coupling input port (MZB applications).
• LNB coax line powering. The SZB-190 generates the required voltage/tone signals for the selection of H/V polarisation and high/low frequency sub-band.
• Programmable values by micro-switches.

Additional info

Data Sheet

Installation Manual
