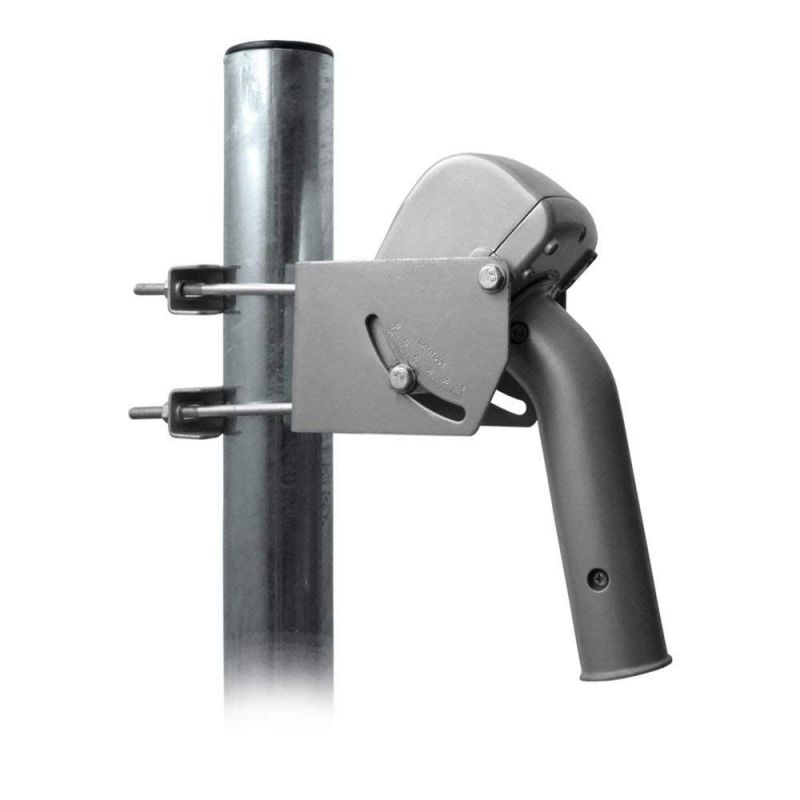

DISEqC Illusion MOTSAT4 parabolic engine up to 1.20m - 150 degrees turn

The MOT-SAT4 engine, the evolution of the MOT-SAT3, automatically calculates the location of the satellite as part of the installation process. The installer enters the longitude and latitude where the antenna is located. This information, together with the previously installed data, allows the engine to locate any satellite. Supports the DiSEqC and Go To X protocols

€91.36
Tax included
Reference tecatel-MOT-SAT4
Brand Tecatel
Quantity
Out-of-Stock

Free shipping

Parabolic antenna motor up to 120 cm and up to 18kg in weight. Ref: ILLUSION MOT-SAT4.

The MOT-SAT4 engine, the evolution of the MOT-SAT3, automatically calculates the location of the satellite as part of the installation process. The installer enters the longitude and latitude where the antenna is located. This information, together with the previously installed data, allows the engine to locate any satellite. Reliable and resistant. You can store up to 60 satellite positions. Supports the DiSEqC and Go To X protocols

Features

  • It has an azimuth angle of 80º east at 80º west, and an elevation angle of 25 to 75º.
  • It supports a maximum antenna diameter of 120cm.
  • It has a mast diameter of 35 to 65mm.
  • It supports a maximum weight of 18kg.
  • Its connection is made through a female F connector.
  • Consumes 50mA in standby and 200mA in normal.
  • Store up to 60 satellite positions
  • Supports the DiSEqC and Go To X protocols

Specifications

Protocols DiSEqC 1.2 & Go To X
Azimut range 80º East ~ 80º West
Elevation range 25 ~ 75o
Maximum diameter of the antenna 120 cm
Standard pole size Ǿ 35 ~ 65 mm
Maximum weight of the antenna 18 Kg
Speed 1.9 / seg (a 13V) : 2.5 / seg (a 18V)
Power supply 13/18 VDC
Connections Female “F”
Power conssumption 50 mA (standby) / 200 mA (normal) / 350 mA (máx.)
Number of satellite positions 60
Packaging 325 x 210 x 135 mm
Gross Weight 3.2 Kg
