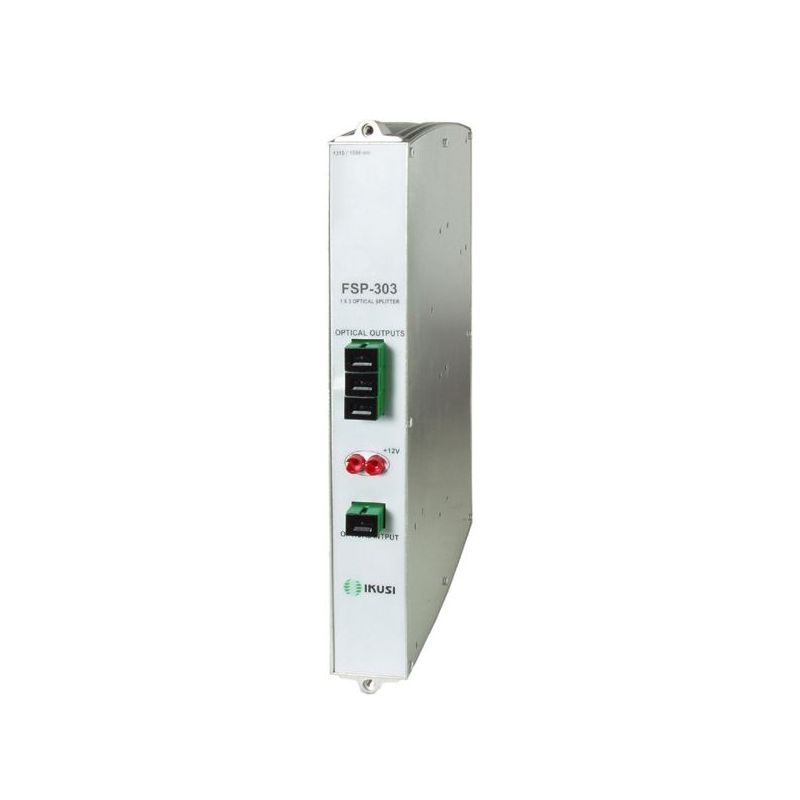

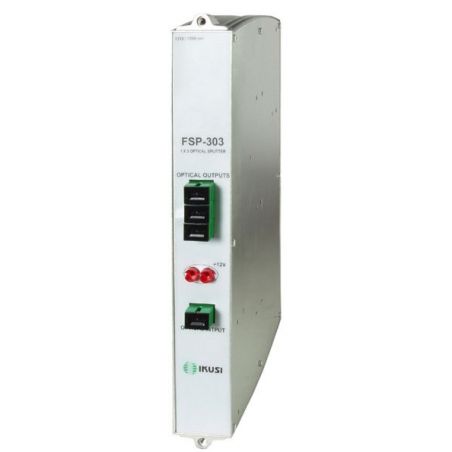

Ikusi FSP-303 3 way optical splitter
3 way optical splitter for singlemode fibre applications
€302.50
Tax included
Reference
ikusi-4905
Brand
Ikusi
Ikusi FSP-303 3 way optical splitter
€302.50
3 way optical splitter for singlemode fibre applications
Main features
- 3 way optical splitters for singlemode fibre applications.
- The splitters share out the optical power of FTD transmitters to feed multiple field nodes, hence maximizing the use of optical transmission equipment.
- The units are reciprocal and can also be used to combine multiple return path fibres to feed one FRR return path receiving module.
Specifications
| Model | FSP-303 | |
| Ref. | 4905 | |
| Number of optical outputs | 3 | |
| Wavelength | nm | 1310 ±40 y 1550 ±40 |
| Attenuation distribution | dB | 5,5 |
| Return losses | dB | > 55 |
| Decoupling outputs | dB | > 55 |
| In/Out Connectors | SC / APC 8º | |
| Dimensions | mm | 230 x 195 x 32 |
Additional info
Notice: Undefined index: category in /var/www/html/var/cache/prod/smarty/compile/layouts_layout_full_width_tpl/70/4e/f5/704ef5ee69ab552287a67b10a070f4285c0f2b78_2.file.product.tpl.php on line 701
Notice: Trying to get property of non-object in /var/www/html/var/cache/prod/smarty/compile/layouts_layout_full_width_tpl/70/4e/f5/704ef5ee69ab552287a67b10a070f4285c0f2b78_2.file.product.tpl.php on line 701
3 way optical splitter for singlemode fibre applications
