The solution to receive free-to-air channels via satellite (HD or SD) and watch them in DTT format.

Main features

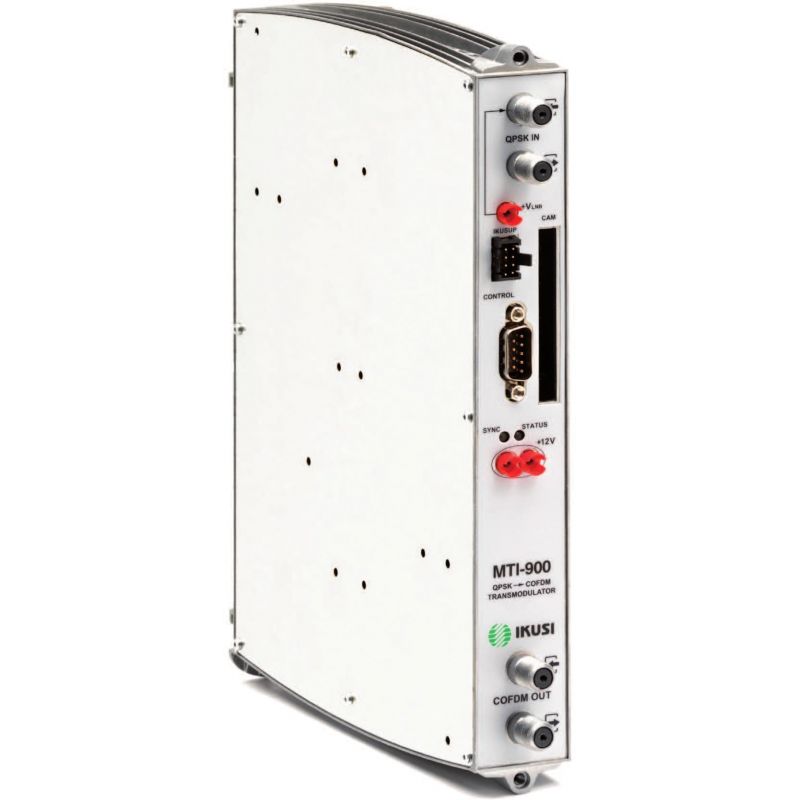

An MTI transmodulator carries out the complete channel processing from the input to the output:

• Tunes a xPSK digital channel of the 950-2150 MHz band, demodulates the signal being received
• Processes the transport stream (with programme de-encrypting in the MTI-900, if this one has a “CAM + Operator Card” couple is installed)
• Re-modulates it in COFDM format on an RF channel that is selectable within the 47-862 MHz frequency range.

Module programming involves the following selections and settings:

• Central xPSK Input Frequency (1 MHz steps)
• Input Symbol Rate (0.001 MS/s steps)
• Central COFDM Output Frequency (1 kHz steps)
• Output Channel Bandwidth (6, 7 or 8 MHz; also 5 MHz on DVB-H)
• Output Operation Mode (2K or 8K; also 4K on DVB-H)
• RF Output Level
• FFT Window (Fast Fourier Transform), to reduce interference on adjacent channel
• In-depth interleaving (only on DVB-H; with 2K and 4K modes)
• Discretionary de-encrypting of one or more Services (only for MTI-900)
• Optional Blockade of Services, PIDs and Conditional Accesses, with Regeneration of Tables
• NIT Adaptation
