Golmar 6502/G+ IP CODE PANEL. IP 6502/G+ coded panel.
Vandal resistant (IK-07) and weatherproof (IP-65) panel made of aluminium.130º wide angle camera with white self-starting LEDs for night vision.4.3" TFT LCD colour screen with 480x272px resolution.Infrared sensor and light sensor.Backlit metal buttons with silk-screen printing of numbers and characters.Acoustic confirmation tones when buttons are pressed.Coded keyboard that allows two calling methods: introduction of the code of the house to call or by search in the phonebook.Possibility for the resident to change their own access PIN.RFID proximity reader for up to 2000 cards.Connection via RJ-45 connector.Dimensions: 146(W) x 317(H) x 50(D)mm.
€1,081.00
Tax included
Reference
golmar-12327402
Brand
Uniarch
Golmar 6502/G+ IP CODE PANEL. IP 6502/G+ coded panel.
€1,081.00
Golmar 6502/G+ IP CODE PANEL. IP 6502/G+ coded panel.
- Vandal resistant (IK-07) and weatherproof (IP-65) panel made of aluminium.
- 130º wide angle camera with white self-starting LEDs for night vision.
- 4.3" TFT LCD colour screen with 480x272px resolution.
- Infrared sensor and light sensor.
- Backlit metal buttons with silk-screen printing of numbers and characters.
- Acoustic confirmation tones when buttons are pressed.
- Coded keyboard that allows two calling methods: introduction of the code of the house to call or by search in the phonebook.
- Possibility for the resident to change their own access PIN.
- RFID proximity reader for up to 2000 cards.
- Connection via RJ-45 connector.
Dimensions: 146(W) x 317(H) x 50(D)mm.
Features
- Possibility for the resident to vary his own access PIN.
- Built-in voicemail, in case of absence.
- SIP 2.0 compatibility.
- Linux operating system that allows future updates and integration with third partners.
- Easy programming through web client.
- No server required. Automatic IP assignment. On the first boot, the master outdoor panel assigns IP addresses to the different units of the system.
- Anti-sabotage alarm tamper.
- 18Vdc input through POE power supply. Requires D4L-G+/POE switches.
- 2 relay contacts.
- Requires embedding box CE-6502/G+.
- Use the Device Manager software to search any Golmar IP G+ device in the network.
Other features
- Door station type : Video
- Technology : IP G+
- Design : Sixty 5
- Door station type : Coded call
- Door stations : Technology
- Technology : IP G+
Downloads

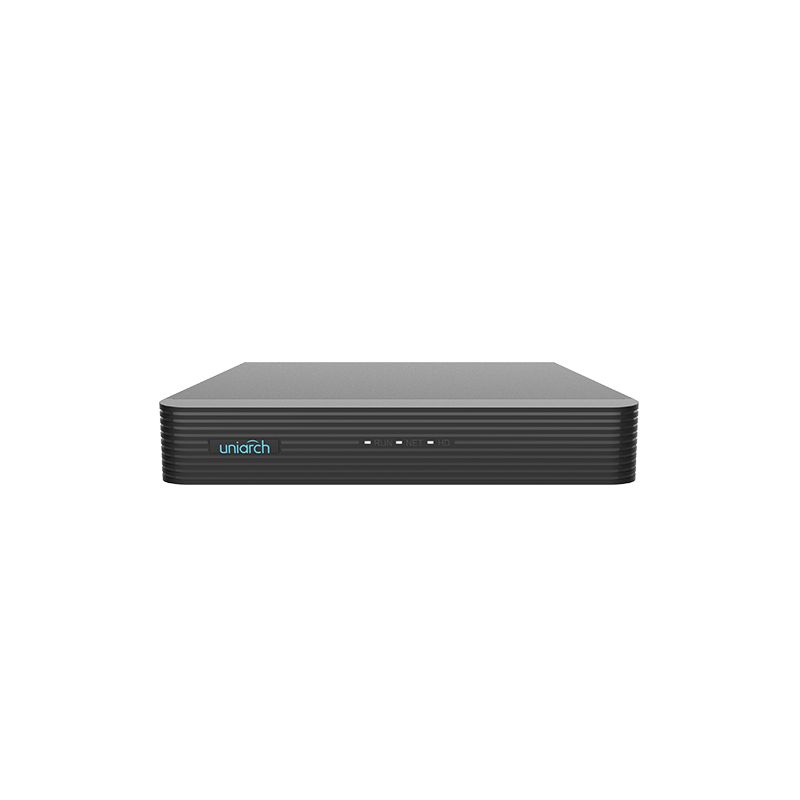

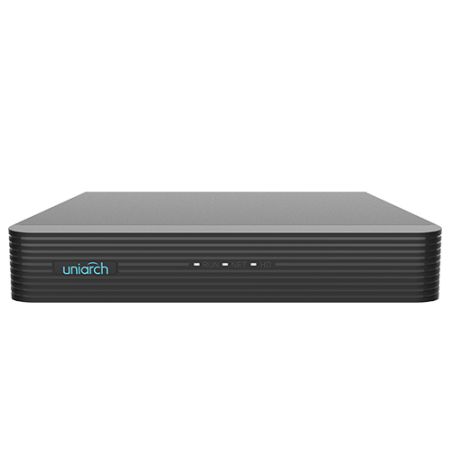

Data sheet
- Power
- DC 12 V
- Dimensions / Weight
- 46(Al) x 260(An) x 246 (Fo) mm / 1 Kg
- Communication
- 1 x USB 2.0 / 1 x USB 3.0 / 1 x RJ45 (Ethernet)
- Inputs for IP cameras
- LAN port up to 10 channels
- IP compatible cameras
- UNIVIEW, ONVIF
- Bidirectional audio
- 1 RCA output
- Video compression format
- Ultra H.265 / H.265 / H.264
- Display resolution
- 3840x2160, 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768
- Total bandwidth
- 64 Mbps downstream / 32 Mbps upstream
- Main Stream recording
- 4K / 5Mpx 4Mpx 3Mpx / 1080p / 960p 720p / D12CIF / CIF
- External Backup
- USB / HDD USB memory
- Internal memory
- 1 SATA HDD 3.5\" of up to 6 TB (not included)
- Remote access
- Web browser, Smartphone App & PC Software
- Video outputs
- 1 HDMI 4K, 1 VGA
- Brand
- Uniarch
- Decoding
- 1x4K @ 30fps / 1x5MPx @ 30fps / 2x4MPx @ 30fps / 2x3MPx / 30fps @ 4x1080p / 8x720p / 30fps @ 10xD1 / 30fps @ [%VAR%]
