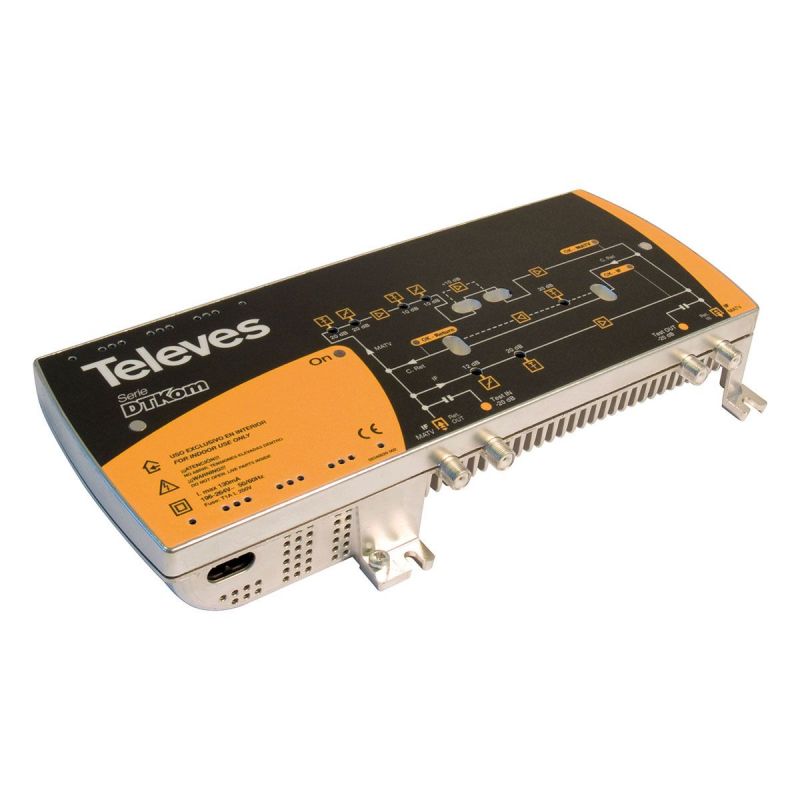

Televés DTKom: IF + MATV central amplifier w/Ret.

Televes DTKom IF + MATV central amplifier w/Ret.

High-powered central amplifier with active/passive switchable amplifier for the return channel and IF amplifier.

€386.96

Tax included

Reference televes-533501

Brand Televes

Televes DTKom IF + MATV central amplifier w/Ret.

€386.96

Description
Product Details

High-powered central amplifier with active/passive switchable amplifier for the return channel and IF amplifier.

Main features

Range of high performance amplifiers, offering functionality and power, and designed to have direct access to all configuration parameters of the equipment.

Push-pull and power-doubling technology amplifiers. (123 o 129 dBμV).
Specific components for optimal performance in terms of noise figure.
LED signaling the presence of RF signal.
DC line power for preamplifiers.
Gain switch: high/low..
High efficiency power supply unit.

Power doubling ranger.

Up to 129 dBμV both in the VHF & UHF band.
Configurable with two outputs.

Push-Pull range.

Up to 123 dBμV both in the
Configurable line power.

Specs

Reference		451203
Band	MHz	87-1006	5-65
Gain	dB	30/40	28/-3
Flatness	dB	±1	±1
Maximum Output level	dBμV	129 DIN45004B 119 EN50083 (IMD2) 126 EN50083(IMD3)	129 DIN45004B 119 EN50083 (IMD2) 126 EN50083(IMD3)
Noise figure	dB	8	6
Interstage equalizer	dB	0-10	-
Equalizer	dB	0-10	0-20
Attenuator	dB	0-20	-
Main voltage	VAC	99-253
AC Power Comsumption	W	16
Protection Index	IP	20
Dimensions (W x Hx D)	mm	280 x 142 x 48
Weight	g	2450

Additional information

Data Sheet
