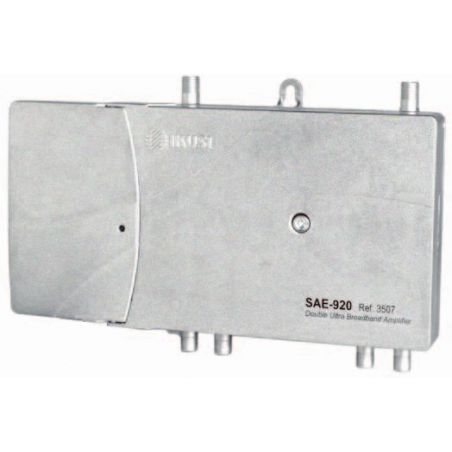

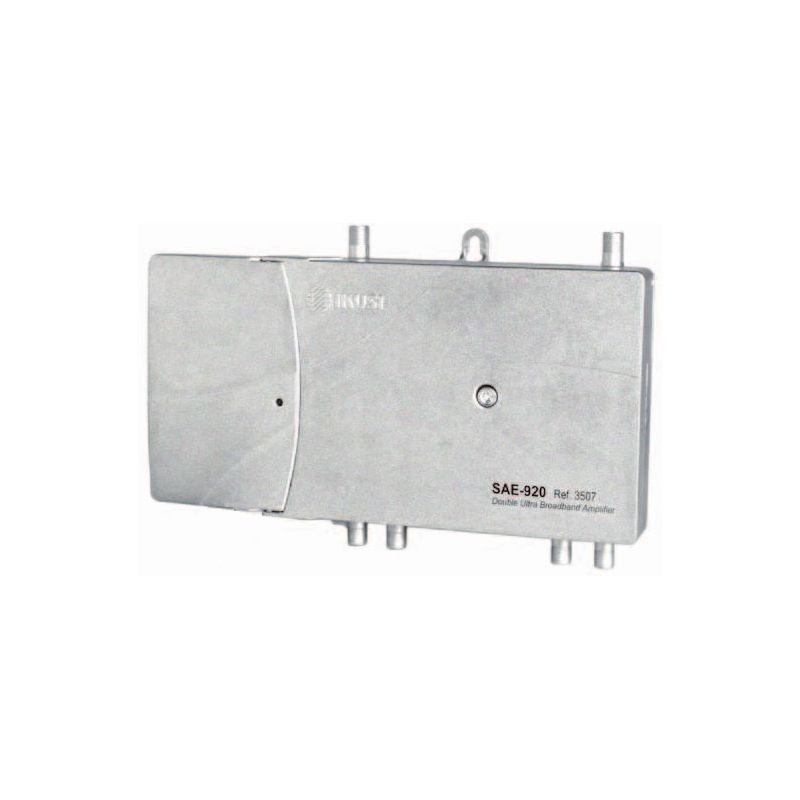

Main features

• Application in collective installations with two downlead distribution cables carrying 2 satellite IF and 1 terrestrial TV signals.
• 1 TV + IF-1 input - 1 IF-2 input, 1 TV + IF-1 output - 1 TV + IF-2 output.
• Separated amplification paths for TV, IF-1 and IF-2 signals, each including attenuation and equalization adjustment potentiometers.
• GaAs-MESFET technology used for terrestrial amplification.
• External 75 Ω output test ports.
• Zinc alloy housing with protective cover for adjustment potentiometers. F type connection.
• Wall-fixing. Indoor mounting. Grounding terminal. Dimensions: 222 x 140 x 44 mm.
