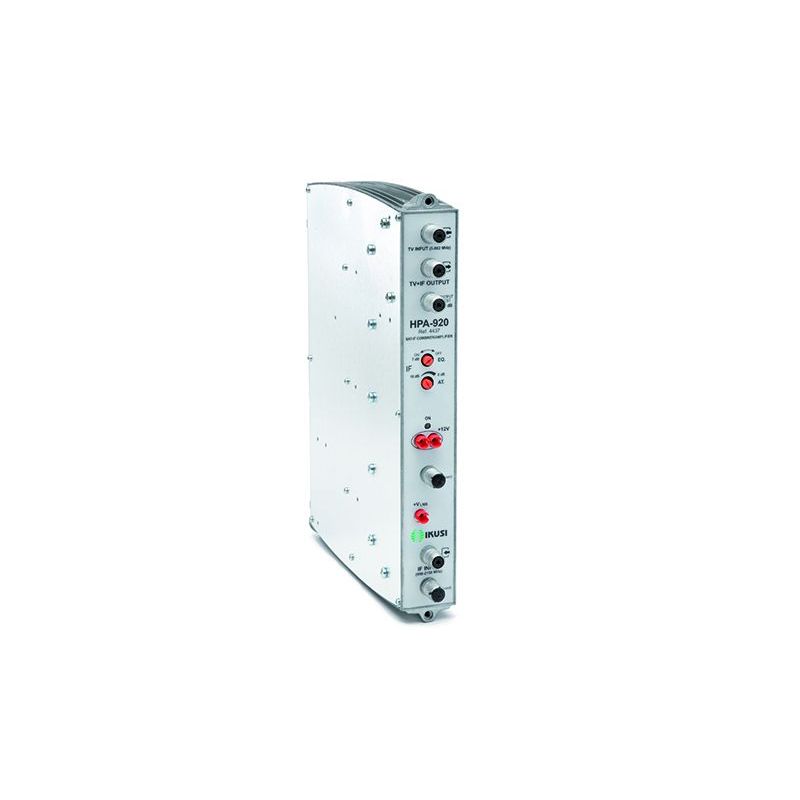

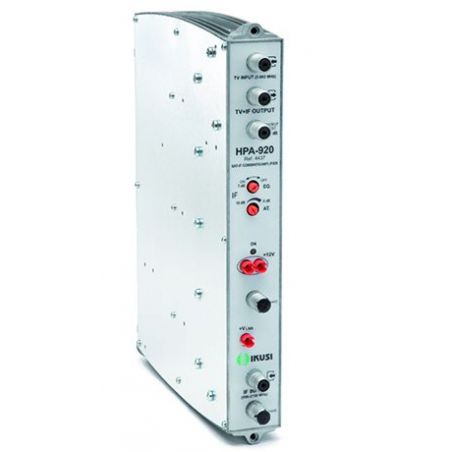

  • Ikusi HPA-125: SAT-IF Combiner/Amplier

Ikusi HPA-920: SAT-IF Combiner/Amplier

Amplificador FI-SAT / Acoplador 950-2150 MHz (120dBμV)

€194.81
Tax included
Reference ikusi-4437
Brand Ikusi
Quantity
Available in 24/48h

Free shipping
Ikusi HPA-125: SAT-IF Combiner/Amplier

Ikusi HPA-920: SAT-IF Combiner/Amplier

€194.81

Main features

  • Application in ClassA headends to drive Sat-IF distribution lines.
  • One HPA-920 per polarity or IF signal being distributed.
  • 1 satellite IF input port with adjustable gain and 0/7 dB switchable slope to compensate for cable losses, 1 terrestrial TV coupling port, 1 combined TV+IF output port and 1 output test port.
  • “Banana” socket to connect the power for the attached LNB.
  • Each module is packed with:
    - 2 F plug bridges, 64 mm length, for input tap line and output coupling line.
    - 1 DC plug bridge, 53 mm length, for connection of +12 V dc voltage.

Specs

Modelo HPA-125
Ref. 4437
Sat-IF band MHz 950 – 2150
Response flatness dB ±1
Nominal gain dB 40
Continuous gain adjustment dB 0 – 18
Slope switchable dB 0/7
Output level (IMD3 -35 dB, EN 50083-3) dBμV ≥ 120
Input/output return loss dB ≥ 10
Noise figure dB < 7
TV band MHz 5-862
TV coupling loss dB ≤ 1,5
Output test (TV+FI) dB TV: -30 ±1, FI: -30 ±1,5
Supply voltage Vdc +12
Consumption mA 250
RF and Test connector type F hembra
DC connector type hembrilla banana
Dimensions mm 230 x 195 x 32
