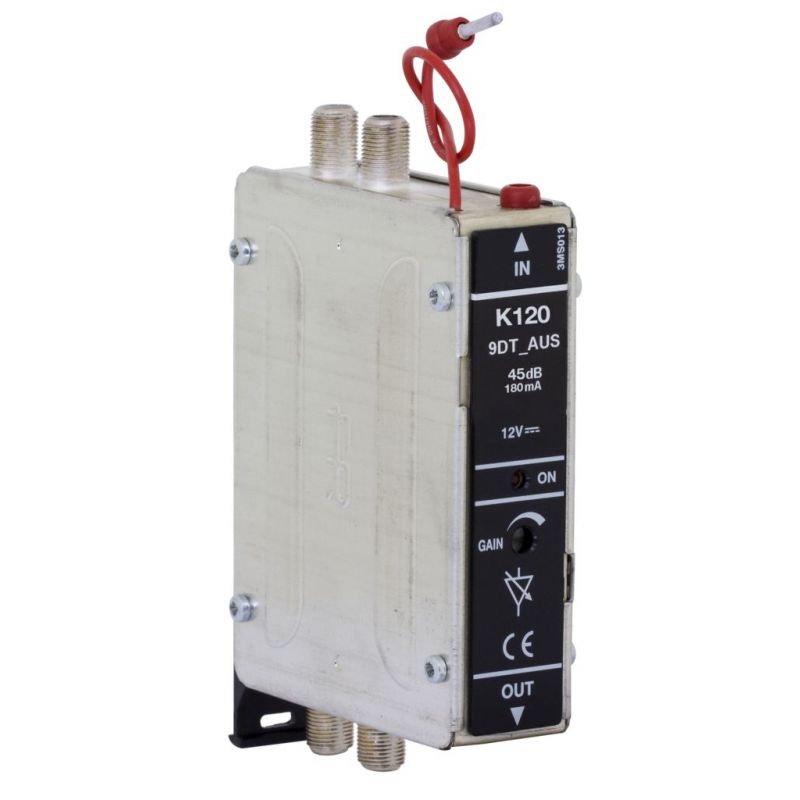

Fracarro K120L/xxDT Single channel UHF amplifier, 45dB Gain, Output Level 120dBμV
Single-channel UHF amplifier of the K-series, gain 45 dB, output level 120dBμV, suitable for amplifying and distributing the channel located in the UHF band.
€79.83
€109.35
Save 27%
Tax included
Reference
fracarro-270822DT
Brand
Fracarro
You might also like
Available channels: 22, 27, 28, 32, 35, 42, 45
If you want other channels, please contact us
Single channel UHF amplifier, 452dB Gain, Output Level 120dBμV
Features
- Easy installation and maintenance
- Flexibility in the unit/headend composition (particularly for the integration between traditional TV, satellite TV and satellite IF)
- Solid and inexpensive without compromising performance.
- Ready for future product ranges
- Active filters for digital terrestrial have been developed using the KF and K120 active channel filters. These have been calibrated specially for the distribution of new COFDM modulated signals.
- For RF connections, all modules use "F" connectors with quick fit interconnection bridges.
Specifications
| Item | K120L/xxDT | |
| Ref | 2708xxDT | |
| Frequency/Channel | MHz | E21-E60 |
| Gain (Adjustment) | dB | 45(30) |
| Selectivity | ||
| PAn-2 | dB | 42 |
| PAn-1 | dB | 10 |
| PAn+1 | dB | 16 |
| PAn+2 | dB | 46 |
| Max output level | dBμV | 120 |
| Noise Figure | dB | 9 |
| Max power | Vdc | 12 |
| Consumption | mA | 200 |
