SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 22SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 229 AND id_lang = 1 Switch Multiswitch 8 Triax Final polarities + 4 receptors feeding ground included
Conmutador Final 8 polaridades + terrestre para 4 receptores alimentacion incluida
search
  • Conmutador Final 8 polaridades + terrestre para 4 receptores alimentacion incluida

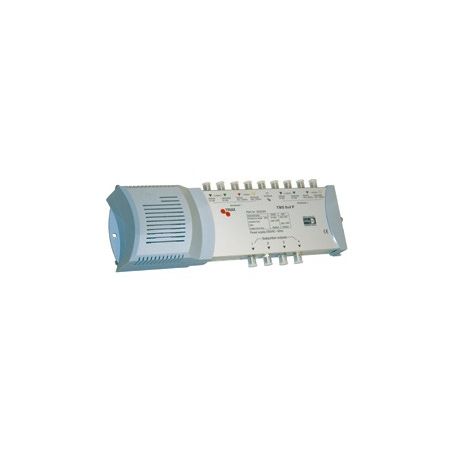

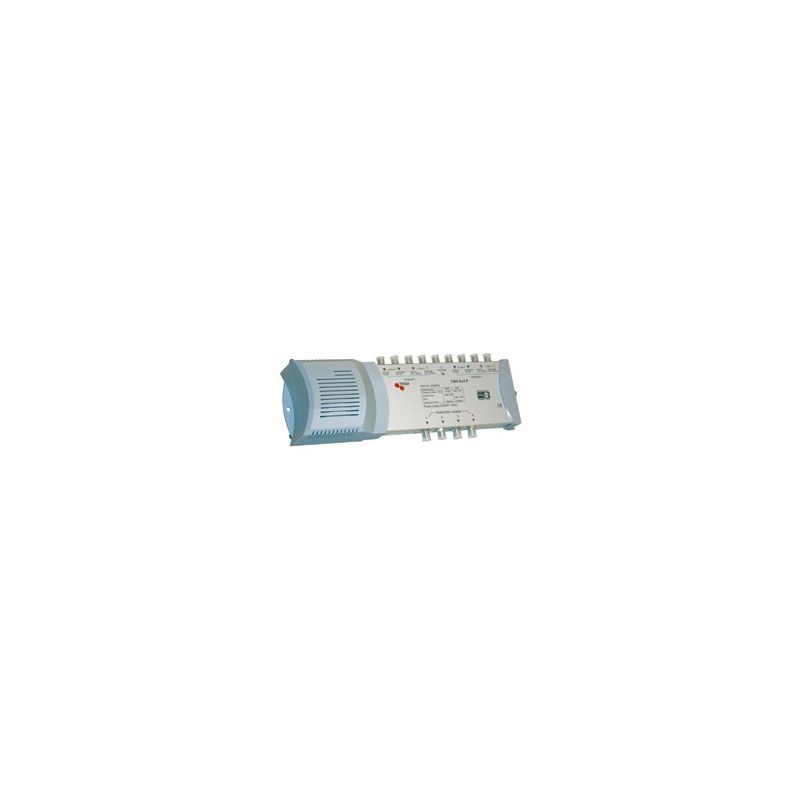

Triax TMS 9x4P Multiswitch End Switch 8 polarities + terrestrial. Power supply included. 9i/4o

Triax TMS 9X4P is a 4-way switch for distributing the 2-position satellite IF signal. The switch can be used individually in efficient systems and at low cost. The unit has a built-in power supply for LNB's. The TMS 9X4P supports DiSEqC.

€242.02
Tax included
Reference triax-300344
Brand Triax
Quantity
Available in 4/5 days

Free shipping
Conmutador Final 8 polaridades + terrestre para 4 receptores alimentacion incluida

Triax TMS 9x4P Multiswitch End Switch 8 polarities + terrestrial. Power supply included. 9i/4o

€242.02

Triax TMS 9x Multiswitches - 8 polarities (2 positions + 1 ter.) For two satellite positions in smaller networks the Triax TMS 9xP series with build in power supply is the right choice. Powersupply included.

Specifications

ORDER INFORMATION
EAN Number 5702663003446
CHARACTERISTICS
Max. output level SAT @ -35 dB IMD3 100 dBµV
Max. output level TER @ -60dB IMD3 85 dBµV
Switch commands 13/18 V, 0/22 kHz, DiSEqC 1.0
FREQUENCY
Frequency range SAT 950-2150 MHz
Frequency range TER 47-862 MHz
GAIN
Gain - SAT (with 5 dB slope) 2 dB
Gain - TER [47-862 MHz] - 2.0 dB
ISOLATION
Isolation cross polarisation H/V 28 dB
Isolation out-out SAT 30 dB
Isolation out-out TER 26 dB
Isolation SAT to TER 30 dB
Isolation TER to SAT 28 dB
RETURN LOSS
Return loss SAT inputs 14 dB
Return loss SAT outputs 7 dB
Return loss TER inputs 11 dB
Return loss TER outputs 8 dB
ELECTRICAL
Impedance 75 Ω
OPERATIONAL
DC Operating voltage 15.0 ± 1.0 VDC
Max. current pass per F-connector 1000 mA
Temperature range 0...+55 °C
CONNECTORS
Colourcoding of IF and TER inputs VL=Black, VH=Red, HL=Green, HH=Yellow
Connector Type F-female
Number of outputs 9
Number of trunk inputs 8 SAT, 1 TER
Number of trunk outputs 8 SAT, 1 TER
Subscriber outputs 4
MECHANICAL
Product Depth 103 mm
Packaging Depth 0,400 m
Packaging Height 0,085 m
Total Weight 1,766 kg
Packaging Width 0,140 m
Net Weight 1,554 kg
Packing QTY 1
Tara Weight 0,212 kg
Packaging Volume 0,005 m3
Product Width 359 mm
Product Height 71 mm
