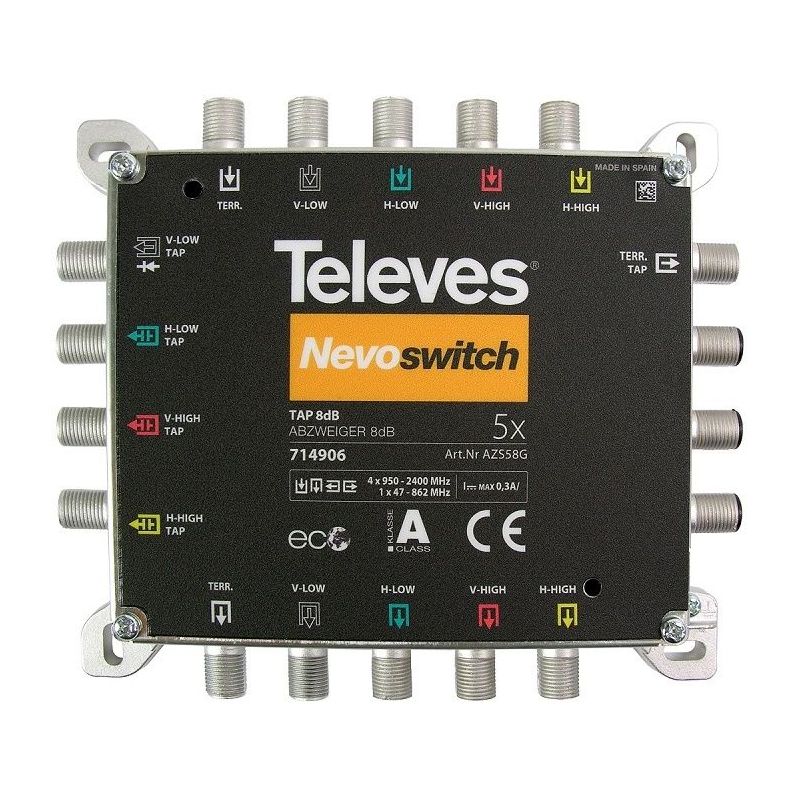

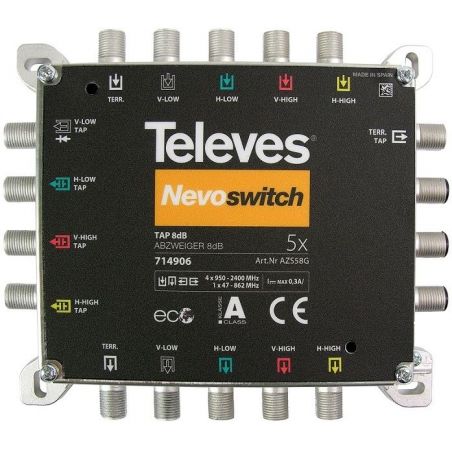

Televes AZS58G Nevoswitch tap 5x5x5 "F" 8dB
Nevoswitch tap has been designed to complement the NevoSwitch range, so any facility can be easily extended to more users, optimizing every output signal. Due to the taps we can split the line signal to the users and also distribute the signal to the rest of the installation.
€71.08
Tax included
Reference
televes-714906
Brand
Televes
Televes AZS58G Nevoswitch tap 5x5x5 "F" 8dB
€71.08
Nevoswitch tap has been designed to complement the NevoSwitch range, so any facility can be easily extended to more users, optimizing every output signal. Due to the taps we can split the line signal to the users and also distribute the signal to the rest of the installation.
Main Features
- 8 dB tap losses.
- Small size and compact design.
- Chassis made of zamak: radiation inmune.
- It allows DC pass (DiSEqC, USALS).
- Low through losses.
- Low consumption ECO mode.
Specs
| Reference / Art. Nr. | 714906 / AZS58G | |||
| Frequency range | MHz | SAT | 950-2400 | |
| RF | 47 ... 862 | |||
| Tap losses | dB | SAT | 3,5 ± 0,8 | |
| RF | 3,5 ± 0,4 | |||
| Through losses | dB | SAT | 8 ± 1,5 | |
| RF | 8 ± 1 | |||
| Isolation | dB | H/V | >25 | |
| Users | ||||
| DC pass | In - Out / Out - In | |||
| Maximum total consumption | mA | - | ||
| Temperature range | ºC | –5…+45 ºC | ||
| Protection level | IP | 20 | ||
| Weight | g | 400 | ||
| Dimensions | mm | 137x120x30 | ||
