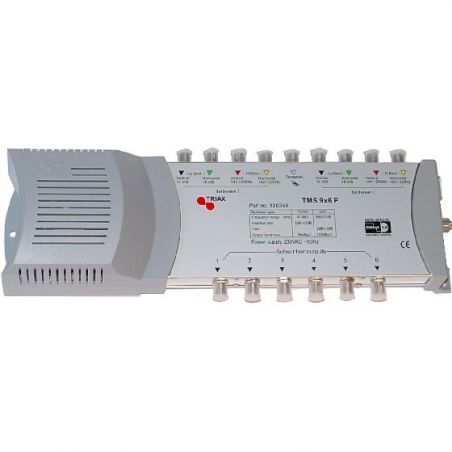

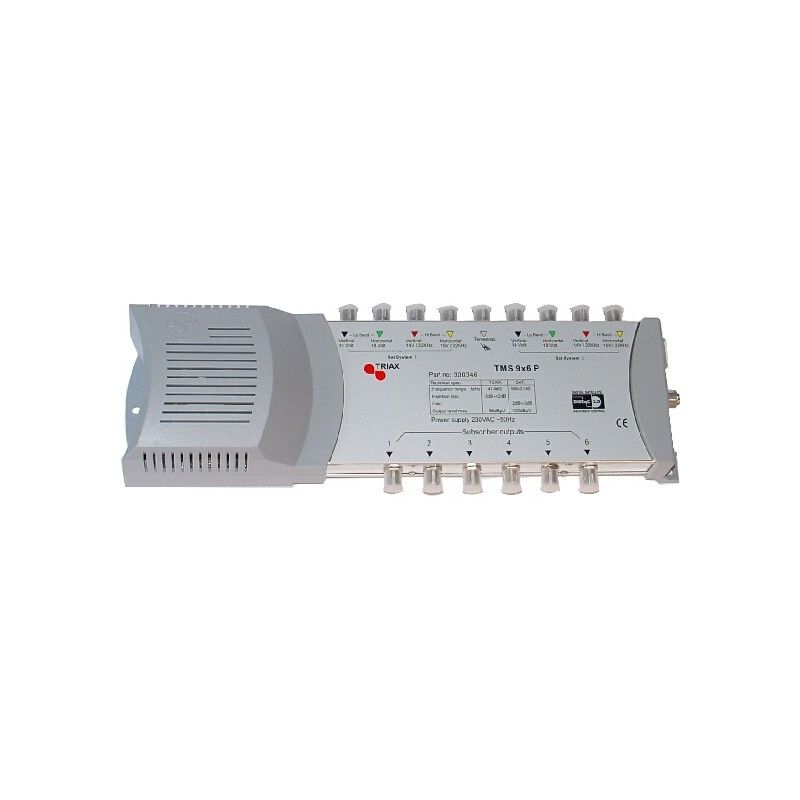

Triax TMS 9x6P Multiswitch End Switch 8 polarities + terrestrial. Power supply included. 9i/6o
Triax TMS 9X6P est un commutateur à 6 voies pour la distribution du signal IF satellite à 2 positions. L'interrupteur peut être utilisé individuellement dans des systèmes efficaces et à faible coût. L'unité dispose d'une alimentation intégrée pour les LNB. Le TMS 9X6P prend en charge DiSEqC.
€270.74
Tax included
Reference
triax-300346
Brand
Triax
Triax TMS 9x6P Multiswitch End Switch 8 polarities + terrestrial. Power supply included. 9i/6o
€270.74
Triax TMS 9X6P is a 6-way switch for distributing the 2-position satellite IF signal.
Features
- The switch can be used individually in efficient systems and at low cost.
- The unit has a built-in power supply for LNB's.
- The TMS 9X6P supports DiSEqC
Specifications
| EAN-number | 5702663003460 |
| Number of inputs | 8 SAT, 1 TER |
| Subscriber outputs | 6 |
| Connectors | Female |
| Frequency range SAT | 950 - 2150 MHz |
| Frequency range TER | 47 - 862 MHz |
| Gain SAT | 2 dB |
| Gain Ter | -2 dB |
| Isolation TER-SAT | 28 dB |
| Isolation SAT-TER | 30 dB |
| Isolation cross polarisation H/V | 28 dB |
| Isolation out-out SAT | 30 dB |
| Isolation out-out TER | 26 dB |
| Return loss SAT inputs | 14 dB |
| Return loss SAT outputs | 7 dB |
| Return loss TER inputs | 11 dB |
| Return loss TER outputs | 8 dB |
| Output level SAT at -35dB IMD3 | 100 dBµV |
| Output level TER at -60dB IMD | 85 dBµV |
| Impedance input/output | 75 Ohm |
| Switching voltage | 13 V - 18 V 13 V/22 kHz - 18 V/22 kHz DiSEqC 2.0 VDC |
| Supply voltage | 15 (± 0.5) |
| Power Supply | Included |
| LNB power supply max. | 1000 mA |
| Colourcoding of IF and TER inputs | Yes |
| Temperature range | 0...+55 |
