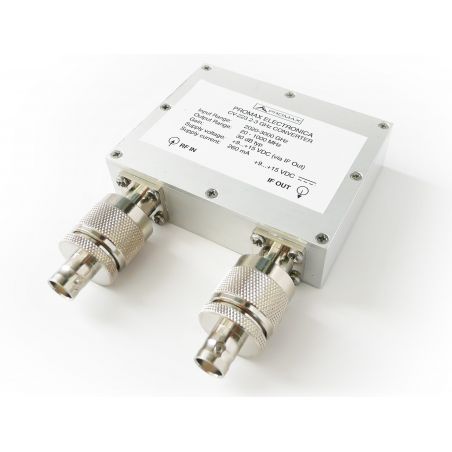

Promax CV-223 2 - 3 GHz down converter
The CV-223 is a radio frequency down converter for the 2020 to 3000 MHz frequency range. This band which is 1000 MHz wide is down converted to the frequency range from 20 to 1000 MHz so that it can be viewed and measured using a spectrum analyser.
€1,067.22
Tax included
Reference
promax-cv-223
Brand
Promax
Promax CV-223 2 - 3 GHz down converter
€1,067.22
The CV-223 is a radio frequency down converter for the 2020 to 3000 MHz frequency range. This band which is 1000 MHz wide is down converted to the frequency range from 20 to 1000 MHz so that it can be viewed and measured using a spectrum analyser.
It is an active device and it must be supplied from the spectrum analyser via the LNB power supply.
The CV-223 down converter can be used together with a spectrum analyser like the built-in HD RANGER, TV EXPLORER or PROLINK ranges spectrum analysers.
Possible applications cover wireless point to point link alignment or measurement of TV COFDM radio links.
- RF input Range from 2020 to 3000 MHz
- RF output Range from 20 to 1000 MHz
- Gain 30 dB typ.
- Supply voltage +9…+15 VDC via output IF connector
