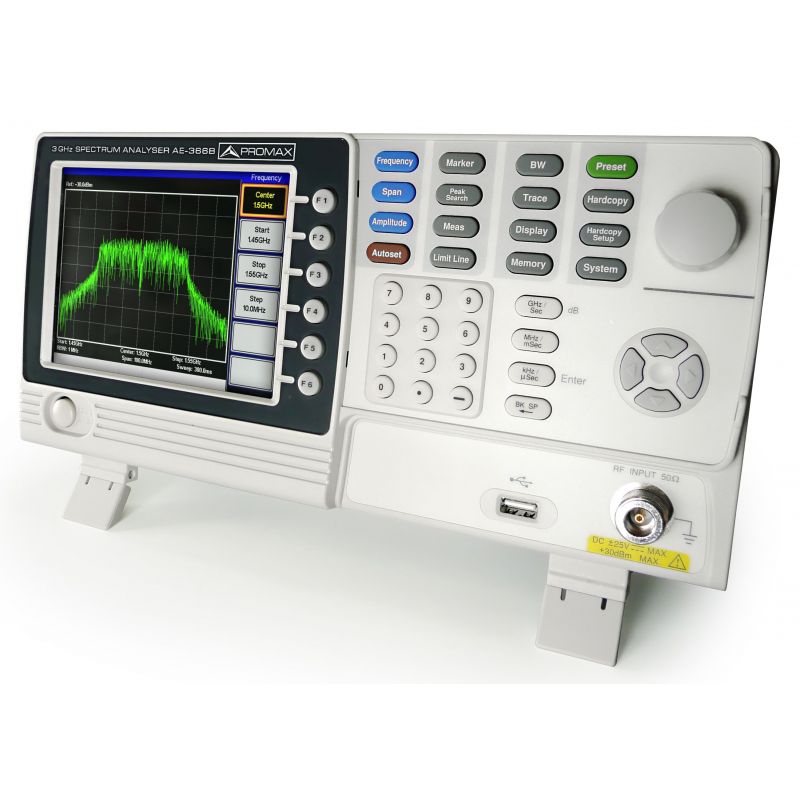

Promax AE-366 B 3 GHz spectrum analyser

The AE-366 B is a low cost, portable and small-sized 3 GHz spectrum analyser. It offers all the main features of an advanced spectrum analyser.

€1,766.60
Tax included
Reference promax-ae-366b
Brand Promax
Quantity
Available in 24/48h

Free shipping

Promax AE-366 B 3 GHz spectrum analyser

€1,766.60

The AE-366 B is a low cost, portable and small-sized 3 GHz spectrum analyser. It offers all the main features of an advanced spectrum analyser.

The spectrum analyser model AE-366 B is specially designed to fulfil the needs of RF telecommunications in the educational field as well as to be the perfect tool for electronic labs. It features a wide range of functions such as markers, traces, power measurements, limit lines, split screen display and sync that allow to perform the measurements easier and faster.

It has USB and RS-232 ports as well as a direct VGA output which is ideal to perform slide shows.

Main Features

  • AUTOSET function: One-key automatic setup of the analyser
  • Three-trace display: Max/Min hold, average...
  • Up to 5 markers: Automatic measurements on the trace
  • Graphical status bar: Easier to use
  • Split window display: Two simultaneous set-ups
  • PASS/FAIL filters: Check the values directly
  • Power measurement: ACPR / OCBW functions, Channel power...

Specs

SPECIFICATIONS AE-366 B
FREQUENCY RANGE From 150 kHz to 3 GHz
CENTER FREQUENCY 0.1 MHz
SPAN From 1 MHz to 3 GHz
BANDWIDTH 30 kHz, 100 kHz, 300 kHz, 1 MHz
REFERENCE LEVEL From +20 to -40 dBm
CONNECTIVITY RS-232C
USN Host and Device connection
VGA output

More info

PDF Specs

Official Website - Software - Firmware - Guide - User manual
