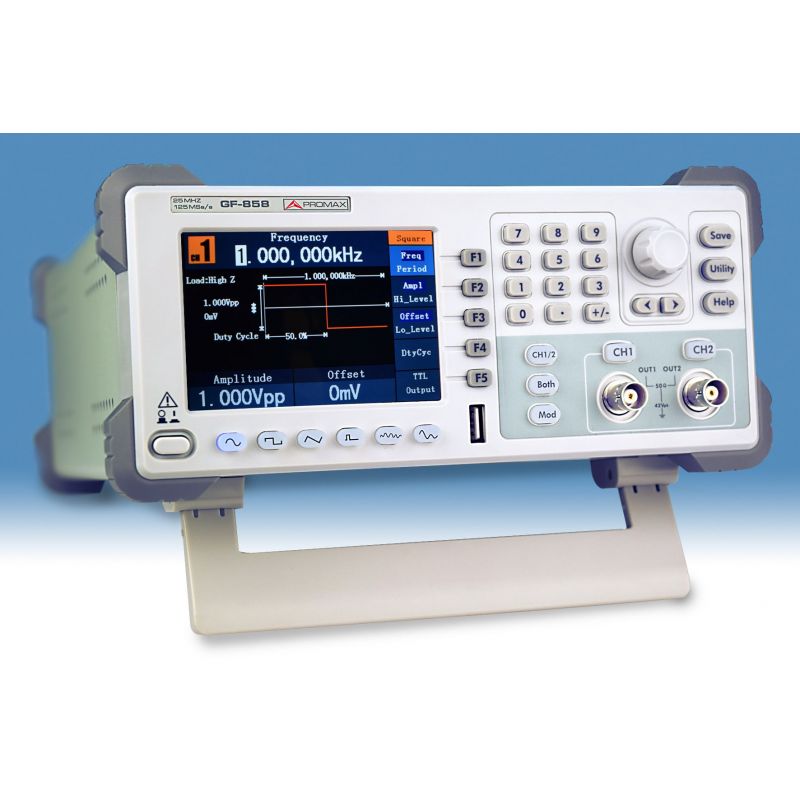

Promax GF-858 25 MHz Arbitrary waveform generator with USB and RS-232
The 25 MHz dual channel multifunction generator GF-858 which combines Arbitrary Waveform and Function Generator, uses DDS (Digital Data Storage) technology to offer two programmable signals in a 4 inches LCD colour screen. All basic waveform are pre-programmed. Besides using the front panel keyboard for programming, the program can be enhanced in the PC and send it through USB or RS-232.
€810.70
Tax included
Reference
promax-gf-858
Brand
Promax
Promax GF-858 25 MHz Arbitrary waveform generator with USB and RS-232
€810.70
The 25 MHz dual channel multifunction generator GF-858 which combines Arbitrary Waveform and Function Generator, uses DDS (Digital Data Storage) technology to offer two programmable signals in a 4 inches LCD colour screen. All basic waveform are pre-programmed. Besides using the front panel keyboard for programming, the program can be enhanced in the PC and send it through USB or RS-232.
One feature that makes the generator especially interesting is the possibility of playing all types of analog and digital modulations: AM, FM, PM, FSK and perform sweeps and burst. The GF-858 also has an input for external modulation and external clock input. It includes a 6 digits frequency counter to 200 MHz.
Main Features
- 4 inch high resolution (480 × 320 pixels) TFT LCD display
- Advanced DDS technology
- Sample rate 125 MS/s
- Frequency resolution 1 μHz
- Vertical resolution 14 bits
- Waveform record length 1 M
- 5 basic waveforms and 45 built-in arbitrary waveforms output
- Standard interface USB port
- PC software included
Specs
| SPECIFICATIONS GF-858 | |
| FREQUENCY OUTPUT | 25 MHz |
| SAMPLE RATE | 125 MS/s |
| VERTICAL RESOLUTION | 14 bits |
| STANDARD WAVEFORM | Sine, Square, Pulse, Ramp and Noise |
| ARBITRARY WAVEFORM | Exponential Rise, Exponential Fall, Sin(x)/x, Step Wave and others, total 48 built-in waveforms and user-defined arbitrary waveform |
| MODULATION | AM, FM, PM, FSK, Sweep and Burst |
| MODULATION FREQUENCY | 2 MHz to 20 kHz (FSK 2 mHz - 100 kHz) |
| COUNTER | 100 MHz to 200 MHz |
| COMMUNICATION INTERFACE | USB, LAN |
More info
Official Website - Software - Firmware - Guide - User manual
