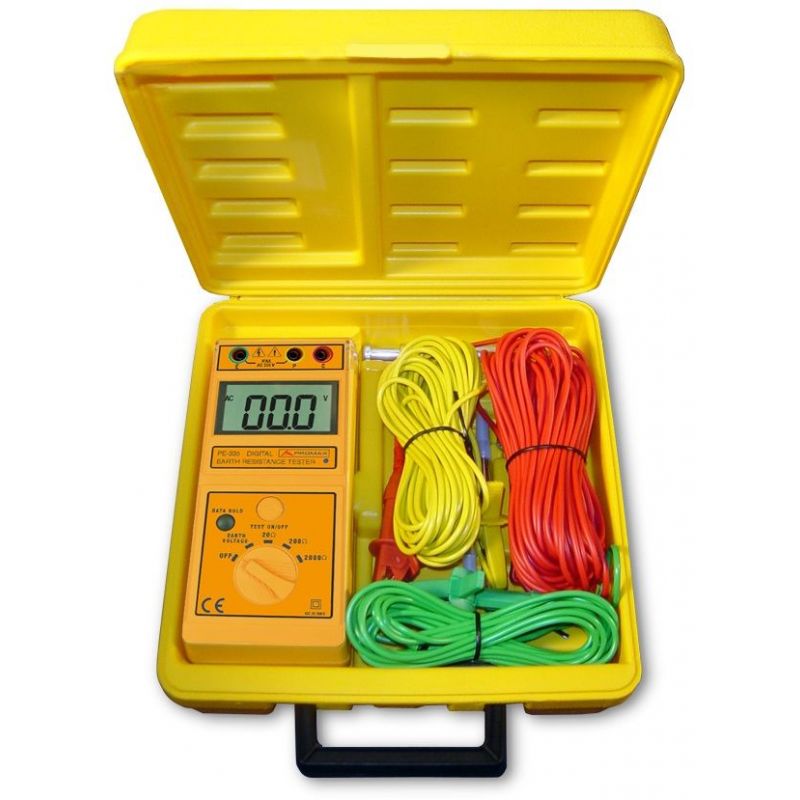

Promax PE-335 Digital earth resistance meter
PE-335 carries out the earth resistance measurements by using the three-electrodes method. 2 mA measuring current permits earth resistance tests without tripping earth leakage current breakers in the circuit under test. PE-335 Digital Earth Resistance Meter comes with functions as data-holding, timer for test function, etc.
€343.64
Tax included
Reference
promax-pe-335
Brand
Promax
Promax PE-335 Digital earth resistance meter
€343.64
PE-335 carries out the earth resistance measurements by using the three-electrodes method. 2 mA measuring current permits earth resistance tests without tripping earth leakage current breakers in the circuit under test. PE-335 Digital Earth Resistance Meter comes with functions as data-holding, timer for test function, etc.
Main Features
- It carries out the earth resistance measurements by using the three-electrodes method.
- 2 mA measuring current permits earth resistance tests without tripping earth leakage current breakers in the circuit under test.
- It allows the measurement by using the simplified two-electrodes method.
- Data hold function.
- LCD panoramic screen.
- Timer for test function (count 3 - 5 minutes).
- Earth voltage measurement.
- Indicator of low battery on screen LCD.
Specs
| SPECIFICATIONS PE-335 | |
| MEASUREMENT SYSTEM | Current injection of 820 Hz, 2 mA |
| EARTH VOLTAGE | 0 ~ 199.9 V AC, 50 / 60 Hz |
| MAXIMUM INPUT VOLTAGE | 200 V RMS |
| RANGE AND RESOLUTION | 0 ~ 19.99 Ω (0.01Ω) 0 ~ 199.9 Ω (0.1Ω) 0 ~ 1999 Ω (1Ω) |
| ACCESSORIES | Test cable set, 2 auxiliary earth spikes, user's manual, transport suitcase |
More info
Official Website - Software - Firmware - Guide - User manual
