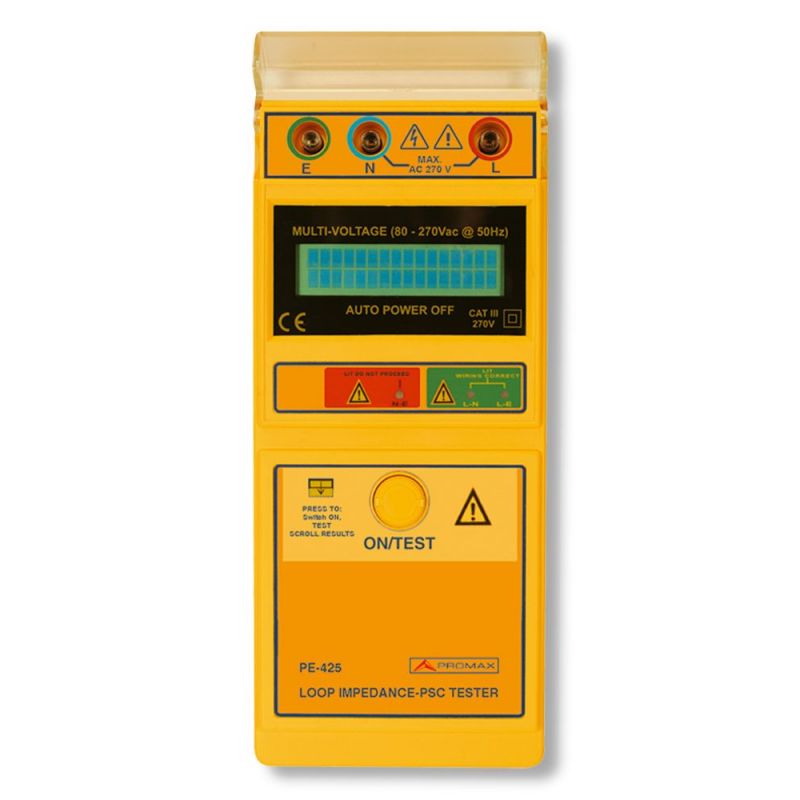

Promax PE-425 Electrical Multifunction network analyzer (LOOP, PSC and Earth Tester)
Electrical multifunction network analyzer for LOOP, PSC & Earth Test PE-425 incorporates a built-in Earth Tester and Loop/PSC tester for ranges from 0,3 to 2000 Ohms. It is possible to display the PSC Line, Neutral and Earth. There is also included a built-in volmeter in the PE-425.
€369.05
Tax included
Reference
promax-pe-425
Brand
Promax
Promax PE-425 Electrical Multifunction network analyzer (LOOP, PSC and Earth Tester)
€369.05
Electrical multifunction network analyzer for LOOP, PSC & Earth Test PE-425 incorporates a built-in Earth Tester and Loop/PSC tester for ranges from 0,3 to 2000 Ohms. It is possible to display the PSC Line, Neutral and Earth. There is also included a built-in volmeter in the PE-425.
Main Features
- Built-In Earth Tester.
- Built-In Loop/Psc Tester. 0.03-2000Ω (Software Ctrl).
- Built-In Voltmeter.
- Correct wiring indicators.
- One Push Button Smart Control.
- Display L-N and L-E voltages. 50 to 275 V AC (Sine).
- Display Line, Earth and Neutral path impedance 0.03-2000Ω (Software Ctrl).
- Display PSC Line, Neutral and Earth. 6kA for 230 Vac suppy.
- Re-scroll through previous results.
- Auto-off function.
- Color coded test leads.
- Rugged Case
Specs
| SPECIFICATIONS PE-425 | |
| LOOPS / EARTH / WIRES | 0.03 - 2000 Ω auto-ranging |
| PROSPECTIVE SHORT CIRCUIT | 0 - 6 kA for 230 V AC |
| OPERATING VOLTAGE | 50-275 V AC (only 50 Hz) |
| ACCESORIES | Set of three safety clamp-banana cables, user's manual, transport suitcase |
More info
Official Website - Software - Firmware - Guide - User manual
Notice: Undefined index: category in /var/www/html/var/cache/prod/smarty/compile/layouts_layout_full_width_tpl/70/4e/f5/704ef5ee69ab552287a67b10a070f4285c0f2b78_2.file.product.tpl.php on line 701
Notice: Trying to get property of non-object in /var/www/html/var/cache/prod/smarty/compile/layouts_layout_full_width_tpl/70/4e/f5/704ef5ee69ab552287a67b10a070f4285c0f2b78_2.file.product.tpl.php on line 701
Electrical multifunction network analyzer for LOOP, PSC & Earth Test PE-425 incorporates a built-in Earth Tester and Loop/PSC tester for ranges from 0,3 to 2000 Ohms. It is possible to display the PSC Line, Neutral and Earth. There is also included a built-in volmeter in the PE-425.
