Conmutador Final 8 polaridades + terrestre para 16 receptores alimentacion incluida
search
  • Conmutador Final 8 polaridades + terrestre para 16 receptores alimentacion incluida

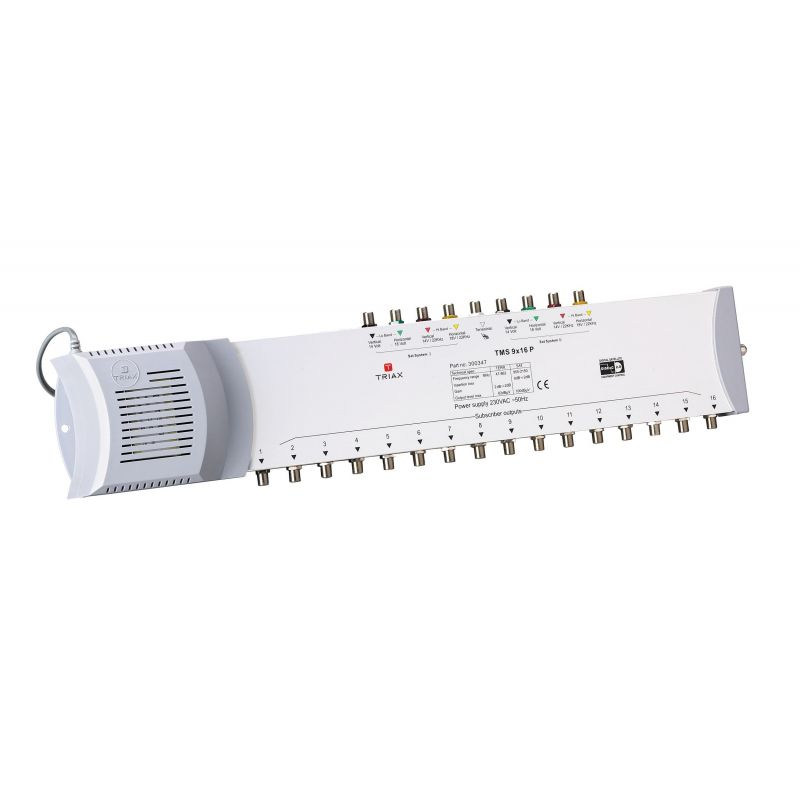

Triax TMS 9x16P Multiswitch End Switch 8 polarities + terrestrial. Power supply included. 9i/16o

O Triax TMS 9X16P é um interruptor de 16 vias para a distribuição do sinal IF do satélite de 2 posições. O switch pode ser usado individualmente em sistemas eficientes e com baixo custo. A unidade possui uma fonte de alimentação embutida para LNB's. O TMS 9X6P suporta DiSEqC

€228.73 €490.88 Save €262.15
Tax included
Reference triax-300347
Brand Triax
Quantity
Last items in stock

Free shipping
Conmutador Final 8 polaridades + terrestre para 16 receptores alimentacion incluida

Triax TMS 9x16P Multiswitch End Switch 8 polarities + terrestrial. Power supply included. 9i/16o

€228.73 €490.88 Save €262.15

Multiawitches Triax TMS 9x - 8 polarities (2 positions + 1 ter)

Features

  • For two satellite positions in smaller networks.
  • Integrated power supply

Specifications

ORDER INFORMATION
EAN Number 5702663003477
CHARACTERISTICS
Max. output level SAT @ -35 dB IMD3 100 dBµV
Max. output level TER @ -60dB IMD3 82 dBµV
Switch commands 13/18 V, 0/22 kHz, DiSEqC 1.0
FREQUENCY
Frequency range SAT 950-2150 MHz
Frequency range TER 47-862 MHz
GAIN
Gain - SAT (with 5 dB slope) 0 dB
Gain - TER [47-862 MHz] 2.0 dB
ISOLATION
Isolation cross polarisation H/V 25 dB
Isolation out-out SAT 30 dB
Isolation out-out TER 30 dB
Isolation SAT to TER 28 dB
Isolation TER to SAT 30 dB
RETURN LOSS
Return loss SAT inputs 10 dB
Return loss SAT outputs 10 dB
Return loss TER inputs 12 dB
Return loss TER outputs 10 dB
ELECTRICAL
Impedance 75 Ω
OPERATIONAL
DC Operating voltage 15.0 ± 1.0 VDC
Max. current pass per F-connector 1000 mA
Temperature range 0...+55 °C
CONNECTORS
Colourcoding of IF and TER inputs VL=Black, VH=Red, HL=Green, HH=Yellow
Connector Type F-female
Number of outputs 9
Number of trunk inputs 8 SAT, 1 TER
Number of trunk outputs 8 SAT, 1 TER
Subscriber outputs 16
MECHANICAL
Product Depth 103 mm
Packaging Depth 0,590 m
Packaging Height 0,085 m
Total Weight 2,274 kg
Packaging Width 0,140 m
Net Weight 1,986 kg
Packing QTY 1
Tara Weight 0,288 kg
Packaging Volume 0,007 m3
Product Width 559 mm
Product Height 71 mm
