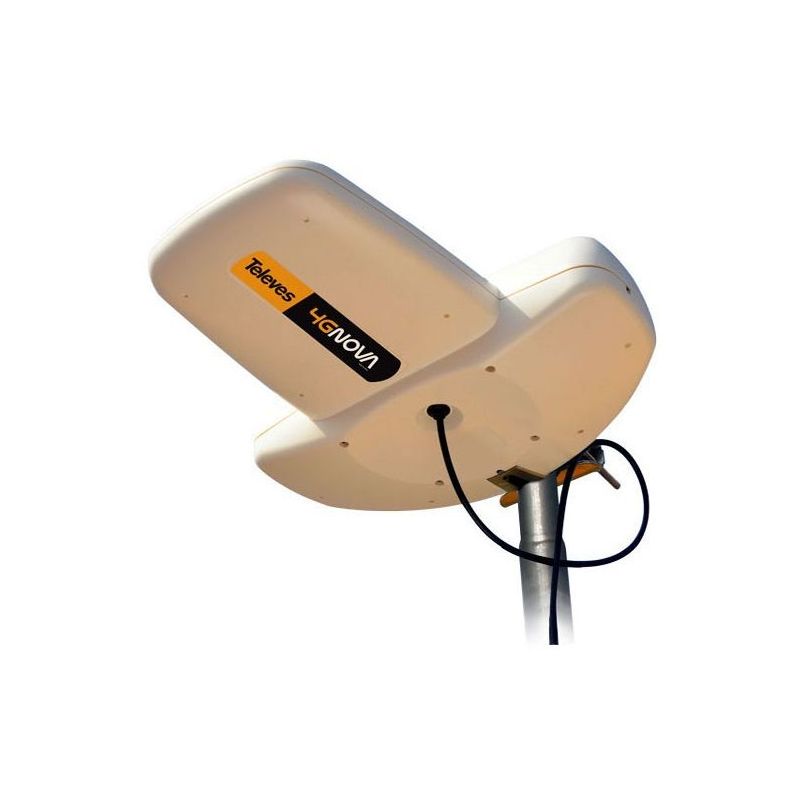

Televes 4GNova Antenna Terrestrial 4G/LTE (SMA Male)
Antenna transmission and reception of LTE/4G signals for extending coverage shielded or difficult propagation areas. The 4GNova antenna can directly connect to an LTE/4G router or a radiant indoor antenna. Male SMA connector and 7.5m cable.
€93.50
Tax included
Reference
televes-650102
Brand
Televes
Televes 4GNova Antenna Terrestrial 4G/LTE (SMA Male)
€93.50
You might also like
Antenna transmission and reception of LTE / 4G signals for extending coverage shielded or difficult propagation areas. The 4GNova antenna can directly connect to an LTE / 4G router or a radiant indoor antenna. In the latter case, the devices can use the 4G network coverage obtained without issuing high power, saving battery and protecting the user from excessive radiation.
Features
- 4G mobile devices more efficient.
- Male SMA connector and 7.5m cable
- Wide frequency range.
- Aesthetic design and noninvasive.
- Reply optimized links uplink and downlink.
- High quality antenna made of high strength materials.
- Its implementation in printed circuit prevents changes in mechanical characteristics and quality guarantees.
- Easy intalacion on balconies and facades. No maintenance required.
- No consumption.
Specifiactions
| Reference | 650102 | |||
| Connectors | SMA Male | |||
| Frequency range | Mhz | 698...960 | 1700...2700 | |
| Gain | dBi | 7.5 | 7 | |
| Front-to-back ratio | dB | >18 | >20 | |
| Impedance | Ω | 50 | ||
| Wind load | N | 69.6 (@130Km/h) 95.7(@150Km/h) |
||
| Dimensions (Wid x Hei x Dep) | mm | 420 x 315 x 75 | ||
| Protection Index | IP | 53 | ||
| Weight | g | 1500 | ||
Application example
* see Attachments for more mounting information
Radiation diagram
