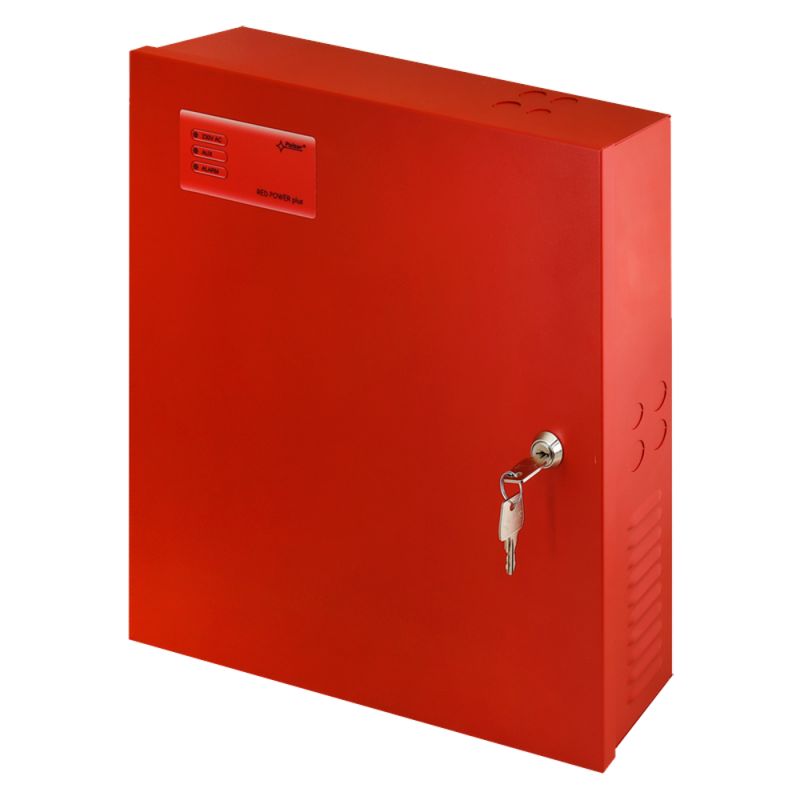

PD-5A17-FIRE - Power supply, Certificate EN54-4, Output current 4.2A,…

Name: Orbita Digital
Address: Dr. Francisco Grande Covian, 3, Oviedo, Asturias, 33011
Price range: €-€€€€

Power supply - Certificate EN54-4 - Output current 4.2A - Up to 5A for 5 minutes - Auxiliary fault outputs - Capacity for 2 12V 17Ah batteries

€410.00

Tax included

Reference PD-5A17-FIRE

Brand Branded

€410.00

Features

Power supply input	230VAC
Output Voltage	22~27.6VDC
Efficiency	87%
Output current	Nominal: 42A Maximum: 5A (5 minutes) Middle charging current: 0.8A
Back-up battery	Supports up to 2x12VDC / 17Ah
Permitted cable	Up to 2.5mm2
Protections	SCP, OLP, OVP, UVP, tamper - opening of the box
Materials	Plate DC01, 1mm, RAL3001 (red), made of metal
Closing	Lock (1xMR027, of the same code)
Degree of protection of the enclosure	IP30
Dimensions	385 x 402 x 88 [+/-2 mm]]

Dimensions: 385 x 402 x 88 [+/-2 mm]]
Power supply input: 230VAC
Output voltage: 22~27.6VDC
Output current: Nominal: 42A Maximum: 5A (5 minutes) Middle charging current: 0.8A
Efficiency: 87%
Permitted cable: Up to 2.5mm2
Back-up battery: Supports up to 2x12VDC / 17Ah
Protections: SCP, OLP, OVP, UVP, tamper - opening of the box
Materials: Plate DC01, 1mm, RAL3001 (red), made of metal
Closing: Lock (1xMR027, of the same code)
Degree of protection of the enclosure: IP30
