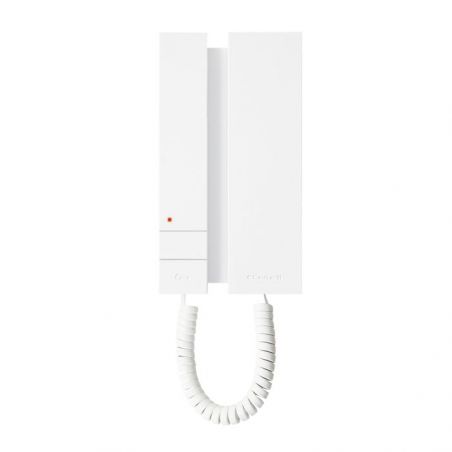

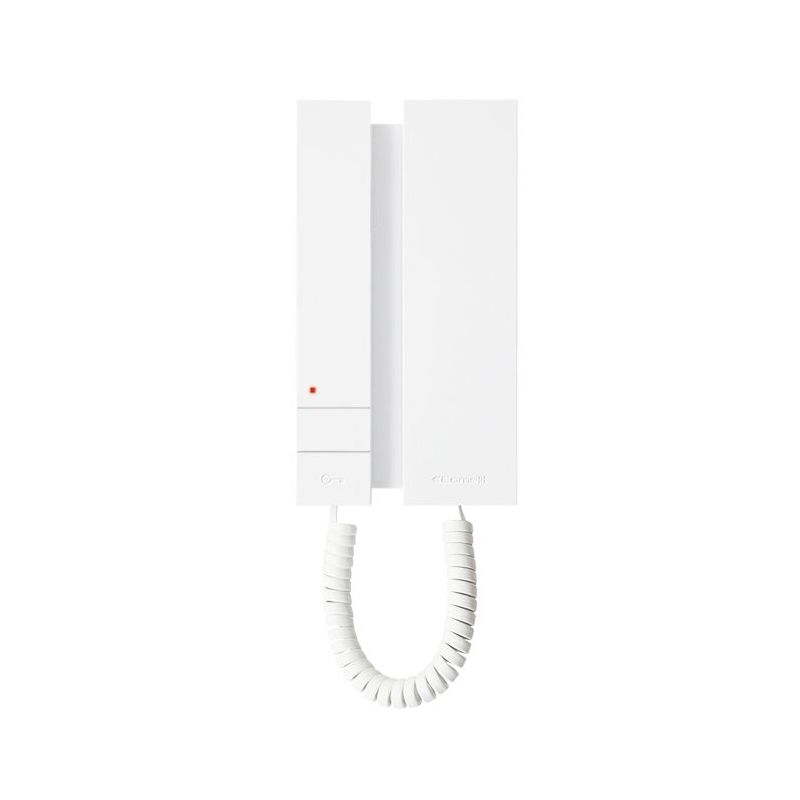

Comelit 2702W 5-wire universal Intercom. Mini series
MINI series door-entry phone for traditional system with electronic call and key button. Call volume and privacy adjustment by means of 3-position selector. Privacy activation is indicated by a red light.
€23.89
Tax included
Reference
comelit-2702W
Brand
Comelit
Comelit 2702W 5-wire universal Intercom. Mini series
€23.89
MINI series door-entry phone for traditional systems, with electronic call, handset, key button and supplementary button for
additional services. Call volume and privacy mode can be set via a 3 position selector switch; activation of privacy mode is
signalled by a red indicator.
Specs 2701W and 2702W
| Model | 2701W | 2702W |
| Main Features | ||
| System | Traditional | Traditional |
| Audio system | Yes | Yes |
| Audio/video system | Yes | Yes |
| Wall-mounted | Yes | Yes |
| Desk base-mounted | Yes | Yes |
| Hands-free function | - | - |
| Induction loop function | - | - |
| Product color | White | White |
| Total buttons | 1 | 2 |
| LED signaling | No | No |
| Functions | ||
| Actuator control function | - | Sí |
| Switchboard call function | - | - |
| Panic call | - | - |
| General intercom call | - | - |
| Selective intercom call | - | - |
| Privacy function | - | Yes |
| Doctor | - | - |
| Floor door call function | - | - |
| Electronic bell | Yes | Yes |
| Customisable ringtone | - | - |
| Settings | ||
| Loudspeaker volume control | Yes | Yes |
| Ringtone volume control | Yes | Yes |
| Technical specifications | ||
| Supply voltage | 15 ÷ 16 Vdc | 15 ÷ 16 Vdc |
| Power consumption stand-by (mA) | 0,200 ÷ 0,250 | 0,200 ÷ 0,250 |
| In called absorption (mA) | 0,400 ÷ 0,420 | 0,400 ÷ 0,4200 |
| In communication absorption (mA) | 0,300 ÷ 0,350 | 0,300 ÷ 0,350 |
| Microphone | Ø 9,6 x 6,9 mm | Ø 9,6 x 6,9 mm |
| Speaker | Ø 0,50 mm ; Max Imput Power 0,5W | Ø 0,50 mm ; Max Imput Power 0,5W |
| IP Rating | 30 | 30 |
| Operating temperature (°C) | -5 +55 | -5 +55 |
| Operating humidity (%) | 25 - 75 | 25 - 75 |
| Dimensions (A x H x P) mm | 105 x 190 x 28 | 105 x 190 x 28 |
| Clamps | 0,257 | 0,257 |
| Bornes | S,2,3,4,P1 | S,2,3,4,P1,P2 |
Notice: Undefined index: category in /var/www/html/var/cache/prod/smarty/compile/layouts_layout_full_width_tpl/70/4e/f5/704ef5ee69ab552287a67b10a070f4285c0f2b78_2.file.product.tpl.php on line 701
Notice: Trying to get property of non-object in /var/www/html/var/cache/prod/smarty/compile/layouts_layout_full_width_tpl/70/4e/f5/704ef5ee69ab552287a67b10a070f4285c0f2b78_2.file.product.tpl.php on line 701
MINI series door-entry phone for traditional system with electronic call and key button. Call volume and privacy adjustment by means of 3-position selector. Privacy activation is indicated by a red light.
