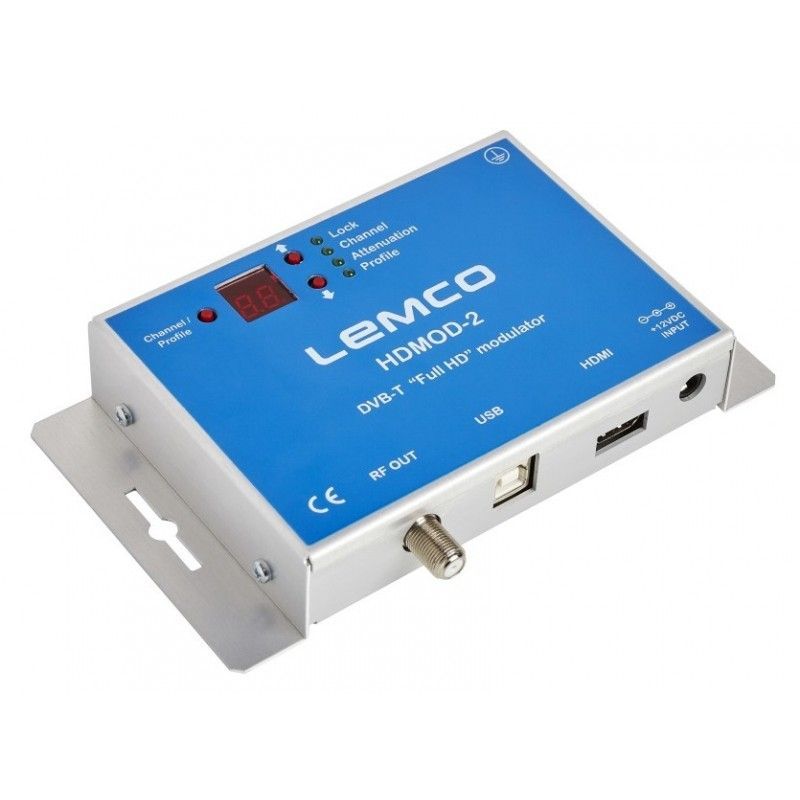

Lemco HDMOD-2 HDMI to DVB-T Modulator

The HDMOD-2 is a high quality DVB-T "Home" modulator which accepts one HDMI signal and converts it into one RF DVB-T channel on its output.

€170.01
Tax included
Reference lemco-hdmod-2
Brand Lemco
Quantity
Out-of-Stock

Free shipping

You might also like

The HDMOD-2 is a high quality DVB-T "Home" modulator which accepts one HDMI signal and converts it into one RF DVB-T channel on its output. The excellent picture (Full HD 1920*1080-30p) and modulation quality (MER>35dB) renders the HDMOD-2 the ideal solution for distributing HD or analog TV signals coming from e.g. a DVD player, STB or camera in a CATV network using the DVB-T technology.

The device can be controlled by either using the onboard SSD (Seven Segment Display) interface and keypad for quick installation or by using the USB interface with the appropriate software accompanying the HDMOD-2 for advance programming. Finally, the HDMOD-2's anodised aluminum metal case provides excellent electromagnetic shielding as well as great heat dissipation and rigidity.

Main Features

  • 1x HDMI input
  • True HDCP support
  • Full HD (1920*1080-30p) resolution
  • H.264 compression
  • MER > 35dB
  • 90dBμV RF output level
  • 1 min setup time
  • USB interface for advanced programming
  • 5 years warranty

Specs

Input
Type 1 x HDMI
Connector 1 x HDMI Type A
Video coding MPEG-4 AVC / H.264
Profile High profile 4.0
Resolution 1920x1080-30p for HDMI - PAL 720x576@25fps
HDCP support Yes
Audio HDMI & Mono/Stereo
Audio encoding MPEG2, ACC, AC3
Standard MPEG-1 Layer II
Level 0.5Vpp to 1.0Vpp adjustable
DVB-T (OUT)
Standard EN 300 744
Bandwidth 5, 6, 7, 8 MHz
Mode 2K, 8K
Constellation QPSK, 16QAM, 64QAM
Guard interval 1/4, 1/8, 1/16, 1/32
Code rate 1/2, 2/3, 3/4, 5/6, 7/8
Programming Interface
Connector Seven Segment Display + keypad USB interface
H.264 encoder
Standard MPEG-4 AVC / H.264
Bit rate 1 – 19 Mbps adjustable
Configurable parameters Service Name, Service ID, Video PID, Audio PID, PMT PID, PCR PID
Transport Stream Processing
Automatic regeneration NIT,PAT,CAT,SDT, PMTs, EITs tables
Configurable parameters TS ID, Original Network ID, Network ID, Provider Name
LCN support Yes
LCN providers Nordig, ITC/UK, EICTA/Europe, New Zealand
RF Output
Type RF DVB-T (COFDM)
Output Frequencies 174…862MHz (1 Hz step)
Output Level 90dbμV max.
Connector 75Ω - F, female
RF output attenuator: 0…25dB
MER 35dB (Typical)
Shoulder attenuation More than 45dB
General
Power supply +12VDC
Power supply consumption 340 mA max.
Operating temperature 0 ºC to 50 ºC
Storage temperature -10 ºC to +70 ºC
Humidity Up to 90%
Dimensions 205 x 101,80 x 41mm
Weight 0.3Kg
