SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 22SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 237 AND id_lang = 1 Switch Final multiswitch Triax + 17 Earth polarities to 16 recipients
search
  • Conmutador Final 16 polaridades + terrestre para 16 receptores

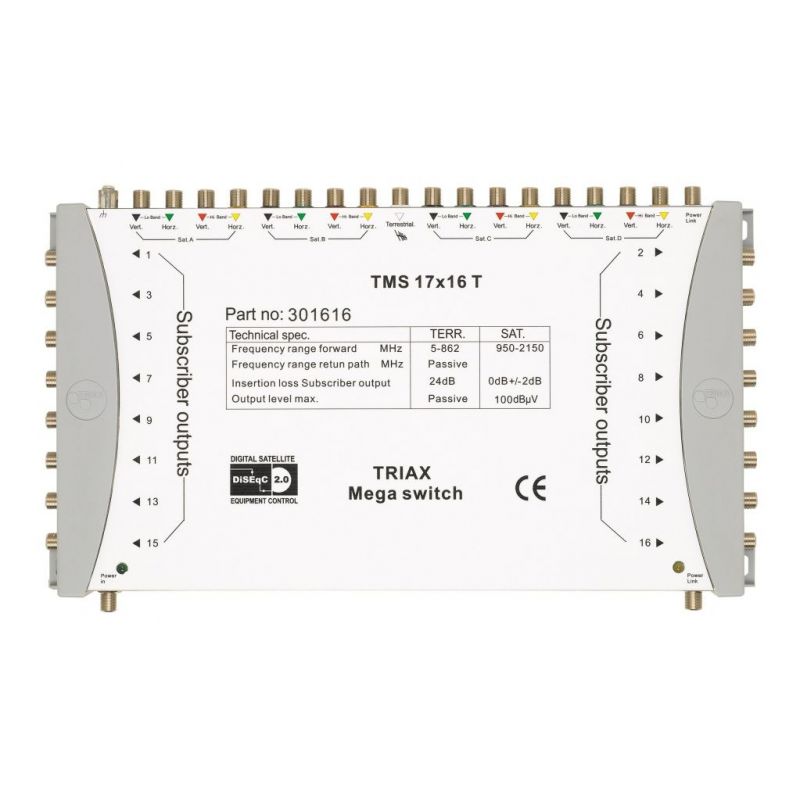

Multiswitch Final Switch TMS 17x16P 17 polarities + terrestrial for 16 receivers Triax

Triax TMS 17X16T is a 16-way switch for distributing the 2-position satellite IF signal. The switch can be used individually in efficient systems and at low cost. The unit has a built-in power supply for LNB's. The TMS 17X16T supports DiSEqC

€846.41
Tax included
Reference triax-301616
Brand Triax
Quantity
Available in 4/5 days

Free shipping

Multiswitch Final Switch TMS 17x16P 17 polarities + terrestrial for 16 receivers Triax

€846.41

Triax TMS 17x series is an easy to install multiswitch system for use where 4 satellite positions are required. A terrestrial input is available to allow terrestrial as well as satellite signals to be available on all subscribers outputs. Satellite position switchning is done via DiSEqC signals from the subscriber set-top box.  External powersupply.

Specifications

ORDER INFORMATION
EAN Number 5702663016163
CHARACTERISTICS
Max. output level SAT @ -35 dB IMD3 100 dBµV
LNB power supply max. 1.3 V/DC
Switch commands 13/18 V, 0/22 kHz, DiSEqC 2.0, Toneburst
FREQUENCY
Frequency range TER 5-862 (passiv) MHz
Frequency range SAT 950-2150 (aktiv) MHz
GAIN
Gain - SAT (with 5 dB slope) 0 dB
Gain - TER [47-862 MHz] - 24.0 dB
ISOLATION
Isolation LNB to LNB 35.0 dB
Isolation SAT to TER 30.0 dB
Isolation TER to SAT 20.0 dB
Isolation cross polarisation H/V 28.0 dB
Isolation out-out SAT 30.0 dB
Isolation out-out TER 25.0 dB
RETURN LOSS
Return loss SAT inputs 12.0 dB
Return loss SAT outputs 12.0 dB
Return loss TER inputs 8.0 dB
Return loss TER outputs 8.0 dB
ELECTRICAL
Impedance 75 Ω
Power link (for amplifiers in the line) Yes
OPERATIONAL
DC Operating voltage 15.0 ± 0.5 VDC
Control LEDs Green for power, Yellow for power link
Temperature range 0...+55 °C
CONNECTORS
Connector Type F-female
Number of trunk inputs 16 SAT, 1 TER
Subscriber outputs 16
Colourcoding of IF and TER inputs VL=Black, VH=Red, HL=Green, HH=Yellow
MECHANICAL
Product Height 55 mm
Product Depth 215 mm
Product Width 355 mm
Packing QTY 1
Packaging Height 0.080 m
Packaging Width 0.220 m
Packaging Depth 0.400 m
Packaging Volume 0.007 m3
Net Weight 2 kg
Total Weight 2 kg
